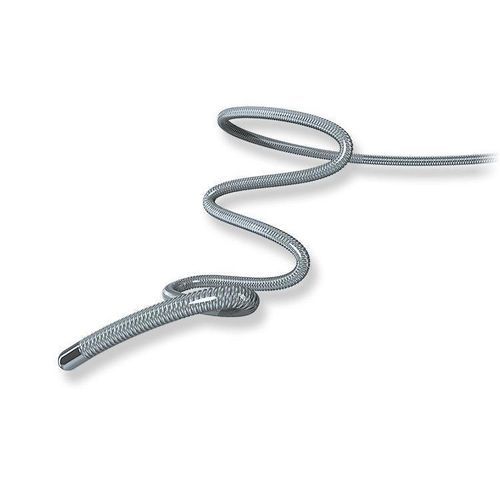

Catheter guidewire SUOH 03

hydrophilic

Features

• Guide wire with ACT ONE for high torque response
• ASAHI's most flexible tip of 0.3gf
• Long hydrophilic coating for high lubricity in the long resistance

Precautions when removing the guide wire
(Excerpt from Instructions for Use)
d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube (B). (Figure 2)
f) Gently grasp the guide wire which came out from the distal end of the holder tube (or the distal end protection tube), at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement
(Excerpt from Instructions for Use)
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Notes
All the data were obtained by company standardized test, which may differ from industry standardized tests.
All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

Technology — ACT ONE
This is a multi-wire coil using core technologies for wire drawing, wire forming, and torque. ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.

Product Spec
Tip Load: 0.3gf
Tip Shape: Straight / Pre-shape
Radiopaque Length: 3cm
Coating: Hydrophilic
Usable Length: 190cm / 300cm
Structure: (product structure illustrated on page)
Category: Guidewire; Complex & Chronic occlusion

Order information (selection of catalog numbers / configurations)
SUOH 03 — AHW14R013P | Tip Shape: Pre-shape | Usable Length: 190cm | Outer Diameter: 0.36mm (0.014 in) | Tip Load: 0.3gf | Coil Length: 19cm | Radiopaque Length: 3cm | Coating: Hydrophilic | Coating Length: 520mm
SUOH 03 — AHW14R013S | Tip Shape: Straight | Usable Length: 190cm | Outer Diameter: 0.36mm (0.014 in) | Tip Load: 0.3gf | Coil Length: 19cm | Radiopaque Length: 3cm | Coating: Hydrophilic | Coating Length: 520mm
SUOH 03 — AHW14R313P | Tip Shape: Pre-shape | Usable Length: 300cm | Outer Diameter: 0.36mm (0.014 in) | Tip Load: 0.3gf | Coil Length: 19cm | Radiopaque Length: 3cm | Coating: Hydrophilic | Coating Length: 520mm
SUOH 03 — AHW14R313S | Tip Shape: Straight | Usable Length: 300cm | Outer Diameter: 0.36mm (0.014 in) | Tip Load: 0.3gf | Coil Length: 19cm | Radiopaque Length: 3cm | Coating: Hydrophilic | Coating Length: 520mm

Technical specifications

• Tip Load: 0.3gf
• Tip Shape: Straight or Pre-shape
• Tip Shape variants: Pre-shape (catalog AHW14R013P / AHW14R313P), Straight (catalog AHW14R013S / AHW14R313S)
• Usable Length: 190 cm or 300 cm
• Outer Diameter: 0.36 mm (0.014 in)
• Coil Length: 19 cm
• Radiopaque Length: 3 cm
• Coating: Hydrophilic (coating length 520 mm)
• Structure: multi-component guide wire (structure illustration available)
• Category: Guidewire — Complex & Chronic occlusion
