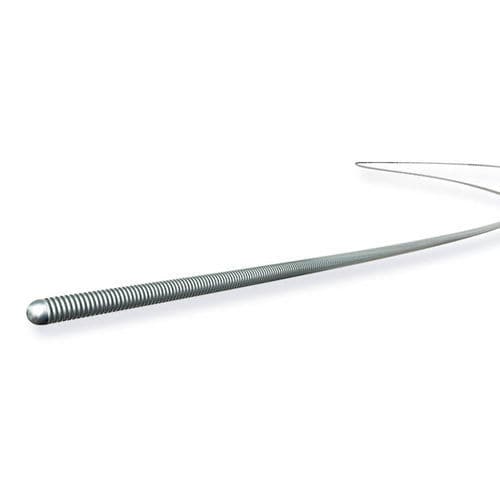

Catheter guidewire ULTIMATEbros3

hydrophilicsteerable

Short description
Hydrophilic coating on an uncoated ball tip preserves steerability while improving vessel selectivity. Designed for complex and chronic occlusion interventions with selectable usable lengths.

Product Spec
Tip Load: 3 gf
Tip Shape: Straight
Radiopaque Length: 11 cm
Coating: Hydrophilic (Uncoated Ball Tip)
Usable Length: 180 cm / 300 cm
Outer Diameter: 0.36 mm (0.014")
Coil Length: 11 cm
Structure: product structure illustration available
Category: Guidewire; Complex & Chronic occlusion

Order Information (table)
Header: Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Coating
Row 1: ULTIMATEbros3 | AHW14S003S | Straight | 180 cm | 0.36 mm (0.014") | 11 cm | 11 cm | Hydrophilic (Uncoated Ball Tip)
Row 2: ULTIMATEbros3 | AHW14S303S | Straight | 300 cm | 0.36 mm (0.014") | 11 cm | 11 cm | Hydrophilic (Uncoated Ball Tip)

Notes
“ASAHI” and “ULTIMATEbros” are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.

Technical characteristics / Features

• Tip Load: 3 gf — optimized balance between support and trackability
• Tip Shape: Straight — designed for lesion crossing in chronic occlusions
• Radiopaque Length: 11 cm — enhanced fluoroscopic visibility
• Coating: Hydrophilic (Uncoated Ball Tip) — improved lubricity at the tip
• Usable Length: available in 180 cm and 300 cm
• Outer Diameter: 0.36 mm (0.014") — standard microcatheter compatibility
• Coil Length: 11 cm — distal support profile
• Category: Guidewire; Complex & Chronic occlusion
• Structure: product structure illustration available
