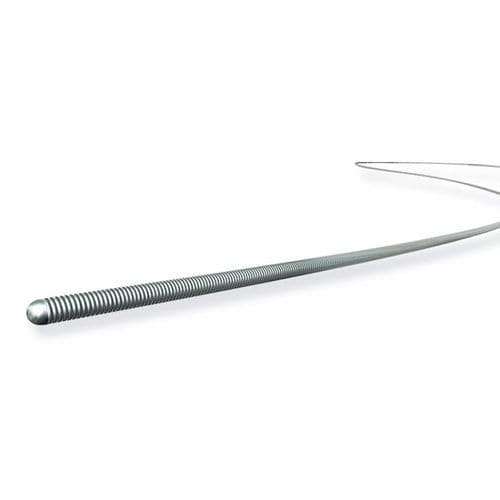

Catheter guidewire Miracle series

coronary

Precautions when removing the guide wire
■Precautions when removing the guide wire
*Excerpt from Instructions for Use

d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube (B). (Figure 1)

f) Gently grasp the guide wire which came out from the distal end of the holder tube, at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement
■Precautions for stent placement
*Excerpt from Instructions for Use

Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Product Spec
Tip Load: 3gf / 6gf / 12gf
Tip Shape: Straight
Radiopaque Length: 11cm
Coating: Silicone
Usable Length: 180cm / 300cm
Structure: (illustration on product page)
Category:

• Guidewire
• Complex & Chronic occlusion

Order Information (selected rows)
Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Coating | Coating Length
ASAHI Miracle 3/MIRACLEbros 3 | AG14M050 | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 12cm
ASAHI Miracle 3/MIRACLEbros 3 | AG14M350 | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 12cm
ASAHI Miracle 6/MIRACLEbros 6 | AG14M060 | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 12cm
ASAHI Miracle 6/MIRACLEbros 6 | AG14M360 | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 12cm
ASAHI Miracle 12/MIRACLEbros 12 | AG14M070 | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 12cm
ASAHI Miracle 12/MIRACLEbros 12 | AG14M370 | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 12cm

Notes
"ASAHI Miracle" and "MIRACLEbros" are trademarks or registered trademarks of ASAHI INTECC. CO., LTD. in Japan and other countries.
*The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test. There are individual differences in values of actual devices.

Caractéristiques / Spécifications techniques

• Tip Load: 3gf, 6gf, 12gf
• Tip Shape: Straight
• Radiopaque Length: 11 cm
• Coating: Silicone
• Usable Length: 180 cm or 300 cm
• Outer Diameter: 0.36 mm (0.014")
• Coil Length: 11 cm
• Coating Length: 12 cm
• Available catalog numbers: AG14M050, AG14M350, AG14M060, AG14M360, AG14M070, AG14M370
