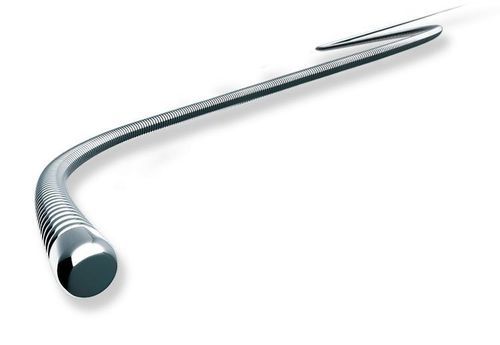

Catheter guidewire Miracle Neo 3

coronaryhydrophilic

Overview
Challenge with safety

Key design features

• Designed to maintain intraluminal position
• Blunt tip design
• 0.36 mm (0.014 in) tip diameter
• Uncoated tip (Uncoated Ball Tip)
• Mini Pre-shape
• 3 gf tip load

Tip Flexibility
Improved smooth rigidity line.

Lubricity
Better lubricity and coating durability.

Torque Response
Superior torque response without whip motion enabling excellent maneuverability.

Precautions when removing the guide wire (excerpt from Instructions for Use)

• d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube (B).
• f) Gently grasp the guide wire which came out from the distal end of the distal end protection tube, at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement (excerpt from Instructions for Use)
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Notes

• All the data was obtained by company standardized test, which may differ from industry standardized tests.
• All the data does not prove that all devices have exactly the same performance with the samples used for these tests.
• The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test. There are individual differences in values of actual devices.

Technology
ACT ONE: This is a multi-wire coil using core technologies for wire drawing, wire forming, and torque. ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.

Product Spec
Tip Load: 3 gf
Tip Shape: Pre-shape
Radiopaque Length: 10.5 cm
Coating: Hydrophilic (Uncoated Ball Tip)
Usable Length: 190 cm / 300 cm
Structure: (referenced product structure image on original page)
Category: #Guidewire; #Complex & Chronic occlusion

Order Information (selected variants)
Product Name: ASAHI Miracle Neo 3 - Catalog No.: AH14R012P - Tip Shape: Pre-shape - Usable Length: 190 cm - Outer Diameter: 0.36 mm (0.014 in) - Coil Length: 10.5 cm - Radiopaque Length: 10.5 cm - Coating: Hydrophilic (Uncoated Ball Tip) - Coating Length: 40 cm
Product Name: ASAHI Miracle Neo 3 - Catalog No.: AH14R312P - Tip Shape: Pre-shape - Usable Length: 300 cm - Outer Diameter: 0.36 mm (0.014 in) - Coil Length: 10.5 cm - Radiopaque Length: 10.5 cm - Coating: Hydrophilic (Uncoated Ball Tip) - Coating Length: 40 cm

Technical specifications

• Commercial name: ASAHI Miracle Neo 3
• Brand: ASAHI INTECC
• Tip load: 3 gf
• Tip shape: Pre-shape (Mini Pre-shape)
• Tip diameter / Outer diameter: 0.36 mm (0.014 in)
• Radiopaque length: 10.5 cm
• Coating: Hydrophilic (Uncoated Ball Tip); Coating length: 40 cm
• Usable lengths available: 190 cm and 300 cm
• Coil length: 10.5 cm
• Catalog numbers: AH14R012P (190 cm), AH14R312P (300 cm)
• Primary category: Guidewire; intended also for Complex & Chronic occlusion
