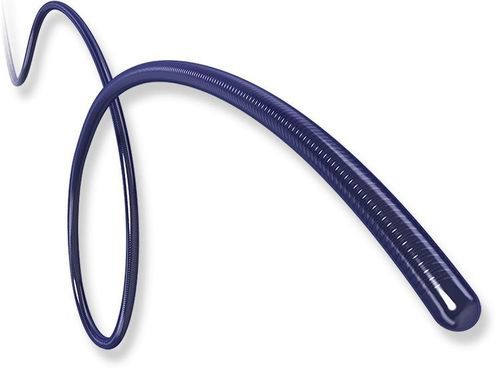

Catheter guidewire Gladius EX

hydrophilic

Summary
ASAHI Gladius EX is a mid-weight, non-tapered polymer-jacket guidewire designed for crossing long, tortuous occluded segments and ambiguous-route chronic total occlusions (CTO). Available in 0.36 mm (0.014 in) diameter with polymer + hydrophilic coating and usable lengths of 200 cm and 300 cm.

Key claims

• Broaden your approach to CTO cases with a middle-weight, versatile guidewire suitable for complex anatomy.
• High lubricity: extended hydrophilic coating (coating length 500 mm) enables smoother passage through long stenotic lesions.
• Torque response: ACT ONE multi-wire coil balances torque force, responsiveness, durability and rigidity to improve pushability and reduce whip motion.
• Polymer + hydrophilic coating enhances surface performance, trackability and device control in tortuous vessels.

Product specifications
Tip load: 3 gf
Tip shape: Pre-shape (also available straight)
Radiopaque length: 3 cm
Coating: Polymer + Hydrophilic (coating length 500 mm)
Usable length: 200 cm / 300 cm
Outer diameter: 0.36 mm (0.014 in)
Coil length: 11 cm
Structure: Multilayer coil/core structure
Category: Guidewire; Complex & Chronic occlusion

Order information
Product Name: ASAHI Gladius EX; Catalog No.: AP14R025P; Tip Shape: Pre-shape; Usable Length: 200 cm; Outer Diameter: 0.36 mm (0.014 in); Coil Length: 11 cm; Radiopaque Length: 3 cm; Coating: Polymer + Hydrophilic; Coating Length: 500 mm
Product Name: ASAHI Gladius EX; Catalog No.: AP14R325P; Tip Shape: Pre-shape; Usable Length: 300 cm; Outer Diameter: 0.36 mm (0.014 in); Coil Length: 11 cm; Radiopaque Length: 3 cm; Coating: Polymer + Hydrophilic; Coating Length: 500 mm
Product Name: ASAHI Gladius EX; Catalog No.: AP14R325S; Tip Shape: Straight; Usable Length: 300 cm; Outer Diameter: 0.36 mm (0.014 in); Coil Length: 11 cm; Radiopaque Length: 3 cm; Coating: Polymer + Hydrophilic; Coating Length: 500 mm

Technology
ACT ONE is a multi-wire coil design built with ASAHI INTECC core technologies (wire drawing, wire forming, torque control). ACT ONE balances torque force, torque response, durability and rigidity to optimize performance in guidewires and microcatheters.

Notes

• All data are from company-standardized tests and may differ from industry-standard tests. Results do not guarantee identical performance across all device samples.
• ASAHI Gladius and ACT ONE are trademarks or registered trademarks of ASAHI INTECC CO., LTD.
