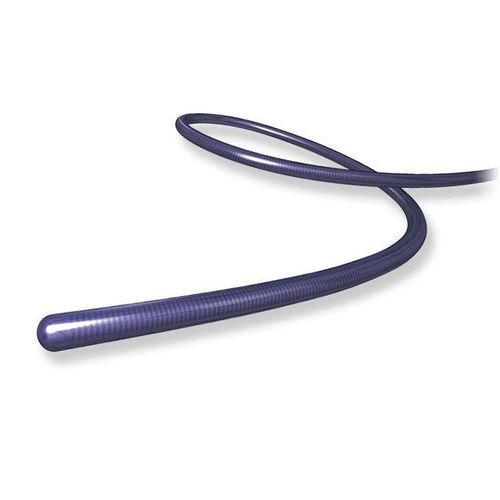

Catheter guidewire SION black

coronaryhydrophilic

Product overview
SION black is a coronary guidewire for catheter-based interventions. It incorporates proprietary multi-wire coil and torque technologies (ACT ONE) and a polymer + hydrophilic coating to provide precise torque transfer and smooth lubricity during vessel navigation.

Features

• ACT ONE multi-wire coil for high torque response
• Polymer jacket combined with hydrophilic coating for improved trackability and lubricity
• Available tip shapes: Straight, J-shape, Pre-shape

Precautions when removing the guide wire
*Excerpt from Instructions for Use

d) Release the guide wire from the tail clip and slide the guide wire slowly, pushing the distal end of the guide wire through the holder tube (B). (Figure 2)

f) Gently grasp the guide wire emerging from the distal end of the holder tube (or the distal end protection tube) as close to the holder tube as possible and withdraw slowly and carefully.

Precautions for stent placement
*Excerpt from Instructions for Use

Do not perform stent placement using more than one guide wire or by passing a wire through stent struts. The stent may be damaged or the guide wire may fracture.

Data notes
*All data were obtained by company standardized tests; results may differ from industry standardized tests.
*Test data do not guarantee identical performance across all devices.

Technology — ACT ONE
ACT ONE is a proprietary multi-wire coil technology that optimizes torque force, torque response, durability and rigidity to enhance performance in guidewires and microcatheters.

Product spec

• Tip load: 0.8 gf
• Tip shapes: Straight, J-shape, Pre-shape
• Radiopaque length: 3 cm
• Coating: Polymer + Hydrophilic (SLIP-COAT® referenced)
• Usable lengths: 190 cm, 300 cm
• Outer diameter: 0.36 mm (0.014 in)
• Coil length: 12 cm
• Coating length: 400 mm
• Structure: Coil/core (see product structure image)

Order information (selected)

• SION black | APW14R010J | J | 190 cm | 0.36 mm (0.014 in) | Tip load 0.8 gf | Coil 12 cm | Radiopaque 3 cm | Polymer + Hydrophilic | Coating length 400 mm
• SION black | APW14R010P | Pre-shape | 190 cm | 0.36 mm (0.014 in) | Tip load 0.8 gf | Coil 12 cm | Radiopaque 3 cm | Polymer + Hydrophilic | Coating length 400 mm
• SION black | APW14R310S | Straight | 300 cm | 0.36 mm (0.014 in) | Tip load 0.8 gf | Coil 12 cm | Radiopaque 3 cm | Polymer + Hydrophilic | Coating length 400 mm

Technical characteristics

• Brand: ASAHI INTECC
• Model / Denomination: SION black
• Category: Guidewire (Frontline)
