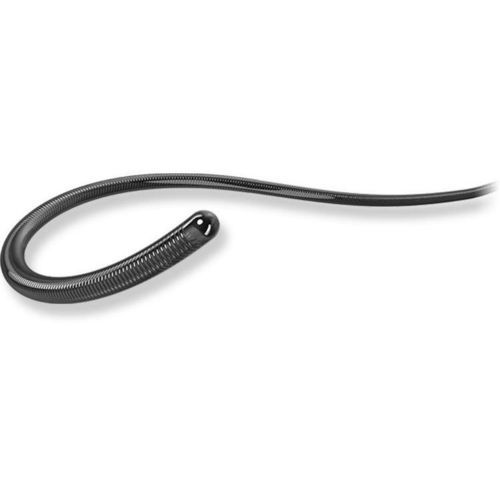

Catheter guidewire Gladius MG

coronaryhydrophilic

Overview
The ASAHI Gladius MG is a 0.014" (0.36 mm) guidewire designed for complex and chronic total occlusion (CTO) interventions. Its modified distal core balance reduces tip prolapse while maintaining shape and handling during lesion crossing, enabling precise guidewire control.

Key features

• Minimized tip prolapse: Modified distal core balance reduces risk of tip prolapse.
• Excellent durability: Preserves shape and guidewire performance after lesion crossing.
• High lubricity: Polymer jacket combined with hydrophilic coating enables smooth manipulation.
• Improved torque response: ACT ONE multi-wire coil provides responsive torque with reduced whip motion.

Technology
ACT ONE: A multi-wire coil technology that optimizes wire drawing, forming and torque characteristics to balance torque force, torque response, durability and rigidity for high-performance guidewire behavior.

Product spec (summary)

• Tip Load: 3 gf
• Tip Shape: Pre-shape
• Radiopaque Length: 3 cm
• Coating: Polymer jacket + Hydrophilic coating
• Coating Length: 41 cm
• Usable Length: 190 cm or 300 cm
• Outer Diameter: 0.36 mm (0.014")
• Coil Length: 8.5 cm
• Structure: Multi-component / coil structure
• Category: Guidewire; Complex & Chronic occlusion
• Catalog numbers: AP14R023P (190 cm), AP14R323P (300 cm)

Order information (selected catalogue entries)
Product Name: ASAHI Gladius MG / Catalog No.: AP14R023P / Tip Shape: Pre-shape / Usable Length: 190 cm / Outer Diameter: 0.36 mm (0.014") / Coil Length: 8.5 cm / Radiopaque Length: 3 cm / Coating: Polymer Jacket + Hydrophilic Coating / Coating Length: 41 cm
Product Name: ASAHI Gladius MG / Catalog No.: AP14R323P / Tip Shape: Pre-shape / Usable Length: 300 cm / Outer Diameter: 0.36 mm (0.014") / Coil Length: 8.5 cm / Radiopaque Length: 3 cm / Coating: Polymer Jacket + Hydrophilic Coating / Coating Length: 41 cm

Notes
* All data obtained by company standardized tests and may differ from industry standards. * Results do not guarantee identical performance across all devices. Tip load values are based on company tests; individual devices may vary.

Specifications / technical details

• Tip Load: 3 gf
• Tip Shape: Pre-shape
• Radiopaque Length: 3 cm
• Coating: Polymer＋Hydrophilic (Polymer Jacket + Hydrophilic Coating)
• Coating Length: 41 cm
• Usable Length: 190 cm or 300 cm
• Outer Diameter: 0.36 mm (0.014")
• Coil Length: 8.5 cm
• Structure: Multi-component / coil structure
• Category: Guidewire; Complex & Chronic occlusion
• Catalog numbers: AP14R023P (190 cm), AP14R323P (300 cm)
