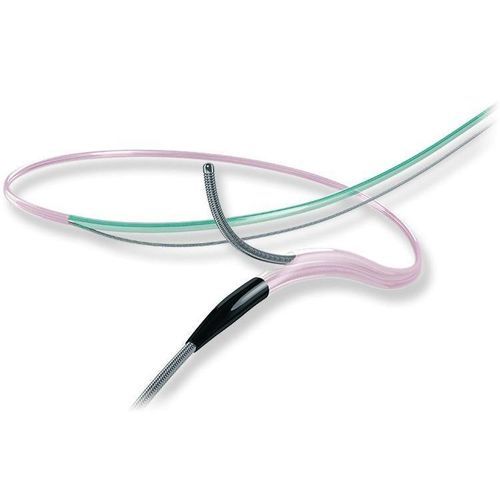

Delivery microcatheter SASUKE

coronaryatraumatic tiphydrophilic

Product overview
ASAHI SASUKE is an OTW double-lumen microcatheter designed for percutaneous coronary interventions (PCI). It combines three core technologies to improve shaft stability, kink resistance and distal trackability, supporting precise guidewire control and device delivery in tortuous vessels.

Key Features

• Kink resistance: double stainless steel core provides high kink resistance and improved pushability.
• Risk reduction / stability: oval shaft design equalizes distal shaft thickness to reduce perforation risk from stiff guidewires and stabilizes the shaft against the vessel wall to prevent roll.
• Trackability: tapered soft tip, based on ASAHI Corsair/Caravel design, maintains trackability in tortuous anatomy.
• Visibility: clearly identifiable guidewire position at the OTW lumen exit port for precise wire control.
• Lubricity: L3 (Long Lasting Lubricity) coating enhances surface lubricity and coating durability.

Product Spec
Tip Outer Diameter: 0.50 mm (1.5Fr)
Hydrophilic Coating Length: 38 cm
Usable Length: 145 cm
Structure: double stainless steel core; OTW double-lumen microcatheter construction (structure illustration available on product page)
Category: Microcatheter; Double-lumen catheter

Order Information
Product Name: ASAHI SASUKE
Catalog No.: SA145-33N
Usable Length: 145 cm
Tip (O.D): 0.50 mm (1.5Fr)
Distal Shaft (O.D): 0.84 mm / 1.08 mm (2.5Fr / 3.3Fr)
Proximal Shaft (O.D): 1.05 mm (3.2Fr)
Tip (I.D): 0.40 mm (0.016")
Shaft (I.D): 0.43 mm (0.017")
Hydrophilic Coating Length: 38 cm

Notes

• All data were obtained using the company's standardized tests, which may differ from industry-standard tests.
• Test data do not guarantee identical performance for every device or in all clinical conditions.

Technical specifications

• Model: ASAHI SASUKE
• Catalog No.: SA145-33N
• Usable length: 145 cm
• Tip outer diameter: 0.50 mm (1.5Fr)
• Hydrophilic coating length: 38 cm
• Distal shaft O.D.: 0.84 mm / 1.08 mm (2.5Fr / 3.3Fr)
• Proximal shaft O.D.: 1.05 mm (3.2Fr)
• Tip I.D.: 0.40 mm (0.016")
• Shaft I.D.: 0.43 mm (0.017")
• Structure: double stainless steel core; OTW double-lumen microcatheter
• Key technologies: double stainless steel core (kink resistance), oval shaft design (stability and perforation risk reduction), tapered soft tip (trackability), L3 long-lasting lubricity coating, visible OTW lumen exit port (visibility)
