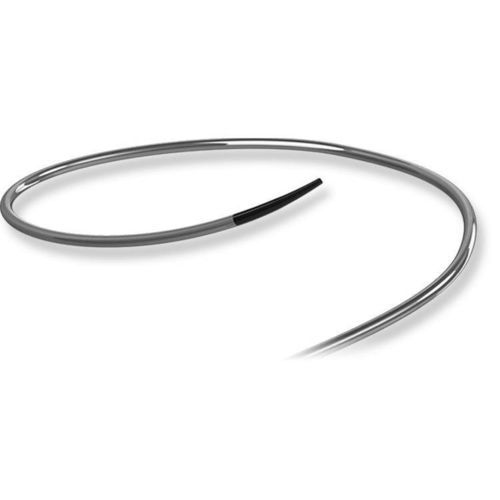

Access microcatheter Corsair Pro XS

coronaryhydrophilichuman

Overview
Versatile microcatheter combining a low profile and enhanced torquability to facilitate retrograde channel tracking in complex clinical scenarios. Designed for improved crossability and distal access in tortuous anatomy.

Key features

• Simplifies retrograde procedures: optimized for retrograde channel tracking in challenging anatomies.
• Low profile and high torque: thin tip allows rotation during procedures to improve crossability; delivers 43% more torque force at 10 rotations versus previous model (company standardized test).
• New SHINKA-Shaft: 14-wire braided rotational shaft increases performance in retrograde approach; shorter weld of ACT ONE tip enhances trackability.
• Flexible tip: highly flexible tip improves guidewire and vessel trackability for distal access in severely tortuous channels.
• Kink resistance at proximal shaft: Spiral Protector increases proximal hub flexibility to protect the proximal shaft during advancement or withdrawal.
• Limited rotation instruction: Do not rotate the catheter in the same direction (clockwise or counterclockwise) more than 10 times.

Technology

• ACT ONE: multi-wire coil using company core technologies for wire drawing, forming and torque. Balances torque force, response, durability and rigidity for high microcatheter performance.

Notes

• All data obtained by company standardized tests and may differ from industry standards.
• Test data do not guarantee identical performance for all devices.

Product Spec (table)
Tip Outer Diameter: 0.44 mm (1.3 Fr)
Hydrophilic Coating Length: 70 cm / 85 cm
Usable Length: 135 cm / 150 cm
Structure: multi-wire / ACT ONE rotational shaft; New SHINKA-Shaft (14-wire braid)
Category: #Microcatheter, #Complex

Order information (table)
ASAHI Corsair Pro XS — Catalog No.: CSR135-21S — Usable Length: 135 cm — Tip(O.D): 0.44 mm (1.3 Fr) — Distal Shaft(O.D): 0.71 mm (2.1 Fr) — Proximal Shaft(O.D): 0.95 mm (2.9 Fr) — Tip(I.D): 0.38 mm (0.015") — Shaft(I.D): 0.48 mm (0.019") — Hydrophilic Coating Length: 70 cm
ASAHI Corsair Pro XS — Catalog No.: CSR150-21S — Usable Length: 150 cm — Tip(O.D): 0.44 mm (1.3 Fr) — Distal Shaft(O.D): 0.71 mm (2.1 Fr) — Proximal Shaft(O.D): 0.95 mm (2.9 Fr) — Tip(I.D): 0.38 mm (0.015") — Shaft(I.D): 0.48 mm (0.019") — Hydrophilic Coating Length: 85 cm

Technical specifications

• Tip Outer Diameter: 0.44 mm (1.3 Fr)
• Hydrophilic coating length options: 70 cm or 85 cm
• Usable length options: 135 cm or 150 cm
• Distal shaft outer diameter: 0.71 mm (2.1 Fr)
• Proximal shaft outer diameter: 0.95 mm (2.9 Fr)
• Tip inner diameter: 0.38 mm (0.015")
• Shaft inner diameter: 0.48 mm (0.019")
• Structure: multi-wire/ACT ONE rotational shaft technology; New SHINKA-Shaft with 14-wire braid
• Design features: flexible tip for high tip-trackability; Spiral Protector for proximal kink resistance
• Usage limitation: do not rotate catheter more than 10 times in same direction
