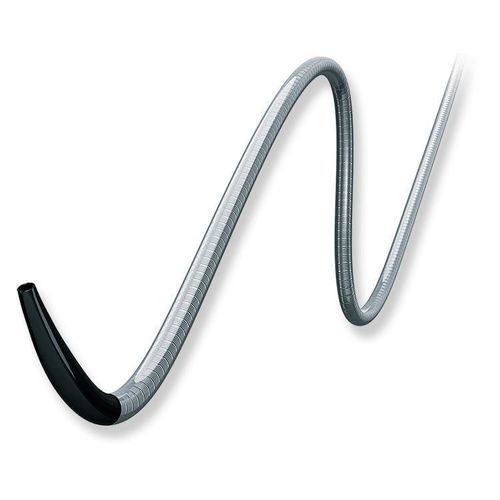

Support microcatheter Corsair Pro

blood vesselhydrophilichuman

Overview
By minimizing the stiffness difference between the tip and the shaft, ASAHI Corsair Pro improves tracking through tortuous vessels and enhances crossing of complex anatomy.

Features

• Tracking ability: Optimized stiffness profile with a more linear increase from tip to shaft compared with Corsair, improving flexibility and trackability in tortuous anatomy.
• Balanced joint design: Gradual transition of stiffness from tip to shaft joint enhances navigation performance.
• Kink resistance at proximal shaft: Spiral Protector increases flexibility of the proximal hub and protects the proximal shaft during advancement or withdrawal.
• Torque, pushability and support: SHINKA-Shaft — proprietary braiding (8 thinner + 2 thicker wires) and tungsten braiding to enhance torque response, pushability and support.
• Rotation limitation: Do not rotate the catheter more than 10 times continuously in the same direction (clockwise or counterclockwise).

Technology

• ACT ONE: Multi-wire coil technology with proprietary wire drawing, forming and torque control. ACT ONE balances torque force, torque response, durability and rigidity for high-performance guidewire and microcatheter behavior.

Product specifications
Tip Outer Diameter: 0.42 mm (1.3Fr)
Hydrophilic Coating Length: 60 cm
Usable Length: 135 cm / 150 cm
Structure: multi-part shaft (see product images for illustrated structure)
Category: Microcatheter — Complex anatomy

Order information (selected catalog items)
Product Name: ASAHI Corsair Pro
Catalog No.: CSR135-26P — Usable Length: 135 cm — Tip (O.D): 0.42 mm (1.3Fr) — Distal Shaft (O.D): 0.87 mm (2.6Fr) — Proximal Shaft (O.D): 0.93 mm (2.8Fr) — Tip (I.D): 0.38 mm (0.015") — Shaft (I.D): 0.45 mm (0.018") — Hydrophilic Coating Length: 60 cm
Product Name: ASAHI Corsair Pro
Catalog No.: CSR150-26P — Usable Length: 150 cm — Tip (O.D): 0.42 mm (1.3Fr) — Distal Shaft (O.D): 0.87 mm (2.6Fr) — Proximal Shaft (O.D): 0.93 mm (2.8Fr) — Tip (I.D): 0.38 mm (0.015") — Shaft (I.D): 0.45 mm (0.018") — Hydrophilic Coating Length: 60 cm

Notes

• All data were obtained by company standardized tests and may differ from industry standardized tests.
• Test data do not guarantee identical performance for all devices compared with test samples.

Technical characteristics

• Brand: ASAHI INTECC
• Commercial name: Corsair Pro
• Tip Outer Diameter: 0.42 mm (1.3Fr)
• Hydrophilic Coating Length: 60 cm
• Usable Length: 135 cm and 150 cm
• Distal Shaft Outer Diameter: 0.87 mm (2.6Fr)
• Proximal Shaft Outer Diameter: 0.93 mm (2.8Fr)
• Tip Inner Diameter: 0.38 mm (0.015")
• Shaft Inner Diameter: 0.45 mm (0.018")
• Structure: multi-part shaft (illustrated in product images)
• Key technologies: SHINKA-Shaft (proprietary braid), ACT ONE (multi-wire coil)
• Usage category: Microcatheter — Complex anatomy
