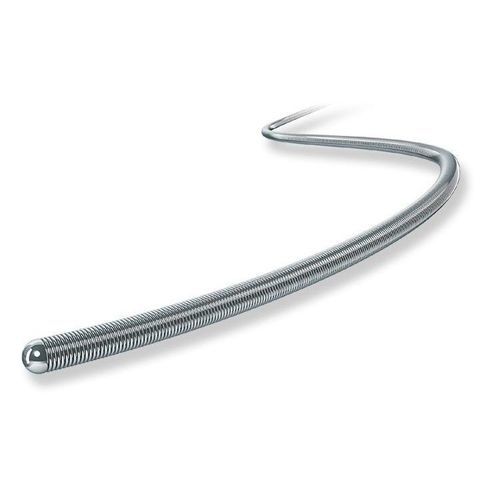

Catheter guidewire SION blue ES

coronaryhydrophilic

Features

• Guide wire with ACT ONE multi-wire coil for optimized torque response and durability
• Silicone coating up to 2.5 cm from the tip for enhanced tip flexibility
• Steeper rigidity transition in the shaft for improved supportability

Precautions when removing the guide wire
d) Release the guide wire from the tail clip and slide the guide wire slowly; push the distal end of the guide wire through the holder tube (B). (Figure 2)

f) Gently grasp the guide wire that emerges from the distal end of the holder tube (or distal end protection tube) as close to the tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement
Do not perform stent placement using more than one guide wire or manipulate a second wire through the stent strut. Doing so may damage the stent or cause the guide wire to fracture.

Notes
* All data were obtained by company standardized tests and may differ from industry standardized tests.
* Test data do not guarantee identical performance for every device lot.

Technology — ACT ONE
ACT ONE is a multi-wire coil technology combining advanced wire drawing, forming, and torque control. It balances torque force, torque response, durability and shaft rigidity for high-performance guidewires and microcatheters.

Product Spec
Tip Load: 0.5 gf
Tip Shape: Straight / J-shape / Pre-shape
Radiopaque Length: 3 cm
Coating: Silicone + Hydrophilic (silicone coating up to 2.5 cm from the tip for tip flexibility)
Usable Length: 190 cm / 300 cm
Outer Diameter: 0.36 mm
Coil Length: 8.5 cm
Structure: Multi-wire coil (ACT ONE)

Order information (catalog examples)
Product Name: SION blue ES | Catalog No.: AHW14R017J | Tip Shape: J | Usable Length: 190 cm | Outer Diameter: 0.36 mm | Tip Load: 0.5 gf | Coil Length: 8.5 cm | Radiopaque Length: 3 cm | Coating: Silicone＋Hydrophilic | Coating Length: 42 cm
Product Name: SION blue ES | Catalog No.: AHW14R017S | Tip Shape: Straight | Usable Length: 190 cm | Outer Diameter: 0.36 mm | Tip Load: 0.5 gf | Coil Length: 8.5 cm | Radiopaque Length: 3 cm | Coating: Silicone＋Hydrophilic | Coating Length: 42 cm
Product Name: SION blue ES | Catalog No.: AHW14R017P | Tip Shape: Pre-shape | Usable Length: 190 cm | Outer Diameter: 0.36 mm | Tip Load: 0.5 gf | Coil Length: 8.5 cm | Radiopaque Length: 3 cm | Coating: Silicone＋Hydrophilic | Coating Length: 42 cm
Product Name: SION blue ES | Catalog No.: AHW14R317J | Tip Shape: J | Usable Length: 300 cm | Outer Diameter: 0.36 mm | Tip Load: 0.5 gf | Coil Length: 8.5 cm | Radiopaque Length: 3 cm | Coating: Silicone＋Hydrophilic | Coating Length: 42 cm
Product Name: SION blue ES | Catalog No.: AHW14R317S | Tip Shape: Straight | Usable Length: 300 cm | Outer Diameter: 0.36 mm | Tip Load: 0.5 gf | Coil Length: 8.5 cm | Radiopaque Length: 3 cm | Coating: Silicone＋Hydrophilic | Coating Length: 42 cm
Product Name: SION blue ES | Catalog No.: AHW14R317P | Tip Shape: Pre-shape | Usable Length: 300 cm | Outer Diameter: 0.36 mm | Tip Load: 0.5 gf | Coil Length: 8.5 cm | Radiopaque Length: 3 cm | Coating: Silicone＋Hydrophilic | Coating Length: 42 cm

Category
#Guidewire / #Frontline

Technical specifications

• Tip Load: 0.5 gf
• Tip Shape: Straight, J-shape, Pre-shape
• Outer Diameter: 0.36 mm
• Usable Length: 190 cm or 300 cm
• Coating: Silicone + Hydrophilic (silicone coating up to 2.5 cm from the tip; overall coating length 42 cm)
• Radiopaque Length: 3 cm
• Coil Length: 8.5 cm
• Structure: Multi-wire coil design (ACT ONE technology)
• Technology: ACT ONE — multi-wire coil optimizing torque force, torque response, durability, and rigidity
