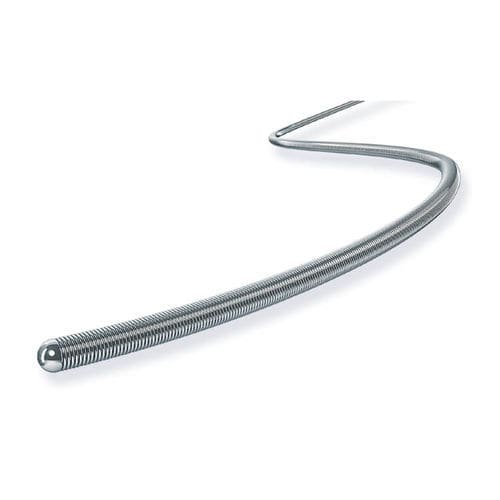

Catheter guidewire Rinato

hydrophilic

Product overview
First-choice guidewire for endovascular navigation with a floppy tip and moderate core support. Designed to provide good maneuverability and trackability. Silicone coating extends up to 30 mm from the tip to ensure a floppy tip; combined hydrophilic coating improves surface lubricity.

Product Spec
Tip Load: 0.8 gf
Tip Shape: Straight / J-shape
Radiopaque Length: 3 cm
Coating: Silicone + Hydrophilic
Usable Length: 180 cm / 300 cm
Structure: coil/core wire structure (structure image available on product page)

Order information (variants)
AGH146000 — Tip Shape: Straight; Usable Length: 180 cm; Outer Diameter: 0.36 mm (0.014"); Coil Length: 20 cm; Radiopaque Length: 3 cm; Coating: Silicone + Hydrophilic
AGH146000J — Tip Shape: J; Usable Length: 180 cm; Outer Diameter: 0.36 mm (0.014"); Coil Length: 20 cm; Radiopaque Length: 3 cm; Coating: Silicone + Hydrophilic
AGH146300 — Tip Shape: Straight; Usable Length: 300 cm; Outer Diameter: 0.36 mm (0.014"); Coil Length: 20 cm; Radiopaque Length: 3 cm; Coating: Silicone + Hydrophilic
AGH146300J — Tip Shape: J; Usable Length: 300 cm; Outer Diameter: 0.36 mm (0.014"); Coil Length: 20 cm; Radiopaque Length: 3 cm; Coating: Silicone + Hydrophilic

Category

• #Guidewire
• #Frontline

Technical specifications

• Tip Load: 0.8 gf
• Tip Shape: Straight or J-shape
• Radiopaque Length: 3 cm
• Coating: Silicone + Hydrophilic (silicone coating up to 30 mm from tip for floppy tip)
• Usable Lengths: 180 cm and 300 cm
• Outer Diameter: 0.36 mm (0.014")
• Coil Length: 20 cm
• Structure: core/coil wire construction (structure diagram provided)
• Available catalog numbers / variants: AGH146000, AGH146000J, AGH146300, AGH146300J
