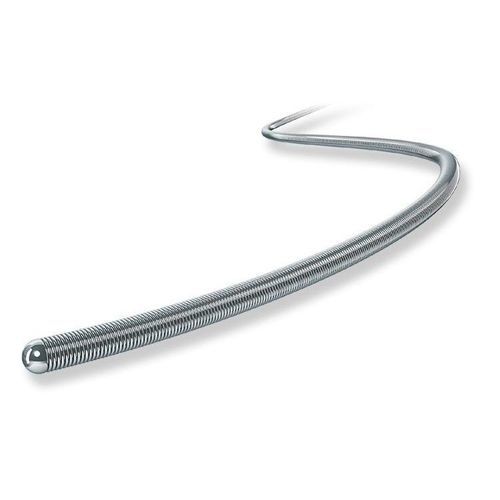

Catheter guidewire SION blue

hydrophilic

Features

• Guide wire with ACT ONE for high torque response
• Silicone coating up to 1.5cm from the tip provides tip flexibility
• Easy-discernible shaft color for differentiation from other ASAHI wires

Precautions when removing the guide wire
d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube(B). (Figure 2)

f) Gently grasp the guide wire which came out from the distal end of the holder tube (or the distal end protection tube), at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Technology — ACT ONE
This is a multi-wire coil using core technologies for wire drawing, wire forming, and torque.
ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.

Product Spec
Tip Load: 0.5gf
Tip Shape: Straight / J-shape / Pre-shape
Radiopaque Length: 3cm
Coating: Silicone＋Hydrophilic
Usable Length: 180cm* / 190cm / 300cm
Structure: (see product structure image on page)
Category: #Guidewire, #Frontline

Order Information (variants)
Header: Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Tip Load | Coil Length | Radiopaque Length | Coating | Coating Length
ASAHI SION blue | AHW14R004J | J | 180cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm
ASAHI SION blue | AHW14R104S | Straight | 190cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm
ASAHI SION blue | AHW14R104J | J | 190cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm
ASAHI SION blue | AHW14R104P | Pre-shape | 190cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm
ASAHI SION blue | AHW14R304S | Straight | 300cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm
ASAHI SION blue | AHW14R304J | J | 300cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm
ASAHI SION blue | AHW14R304P | Pre-shape | 300cm | 0.36mm (0.014") | 0.5gf | 20cm | 3cm | Silicone＋Hydrophilic | 200mm

Notes
* All the data were obtained by company standardized test, which may differ from industry standardized tests.
* All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

Technical specifications

• Commercial name: SION blue
• Brand: ASAHI INTECC
• Tip Load: 0.5gf
• Tip Shape options: Straight, J-shape, Pre-shape
• Radiopaque Length: 3cm
• Coating: Silicone + Hydrophilic (coating length 200mm)
• Usable Length options: 180cm, 190cm, 300cm
• Outer Diameter: 0.36mm (0.014")
• Coil Length: 20cm
• Category: Guidewire (Frontline)
