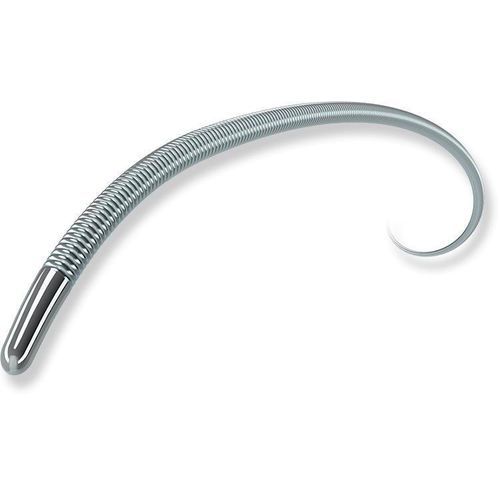

Catheter guidewire Conquest Pro

hydrophilic

Short description
High penetrability and straightness for treatment of complex and chronic occlusions.

Key features

• 0.009" tapered tip
• High tip load (values provided by company standardized test)
• Uncoated tip & hydrophilic coating
• 1 mm 45° pre-shape available
• Radiopaque length: 20 cm
• Usable lengths: 190 cm and 300 cm

Precautions / Instructions (excerpt from Instructions for Use)
■ Precautions when removing the guide wire
*Excerpt from Instructions for Use
d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube (B).(Figure 1)
f) Gently grasp the guide wire which came out from the distal end of the holder tube, at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

■ Precautions for stent placement
*Excerpt from Instructions for Use
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Note
*The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test. There are individual differences in values of actual devices.

Product Spec
Tip Load: 9gf / 12gf
Tip Shape: Straight / Pre-shape
Radiopaque Length: 20 cm
Coating: Uncoated Tip & Hydrophilic Coating
Usable Length: 190 cm / 300 cm
Structure: product structure illustrated on the page (structure image shown)
Category: Guidewire; Complex & Chronic occlusion

Order Information
Header: Product Name | Catalog No. | Outer Diameter | Usable Length | Coil Length | Radiopaque Length | Tip Shape
ASAHI Conquest Pro / Confianza Pro | AGH143190 | 0.23/0.36mm (0.009/0.014") | 190cm | 20cm | 20cm | Straight
ASAHI Conquest Pro / Confianza Pro | AGH143190P | 0.23/0.36mm (0.009/0.014") | 190cm | 20cm | 20cm | Pre-shape
ASAHI Conquest Pro / Confianza Pro | AGH143390 | 0.23/0.36mm (0.009/0.014") | 300cm | 20cm | 20cm | Straight
ASAHI Conquest Pro / Confianza Pro | AGH143390P | 0.23/0.36mm (0.009/0.014") | 300cm | 20cm | 20cm | Pre-shape
ASAHI Conquest Pro 12 / Confianza Pro 12 | AGH143191 | 0.23/0.36mm (0.009/0.014") | 190cm | 20cm | 20cm | Straight
ASAHI Conquest Pro 12 / Confianza Pro 12 | AGH143191P | 0.23/0.36mm (0.009/0.014") | 190cm | 20cm | 20cm | Pre-shape
ASAHI Conquest Pro 12 / Confianza Pro 12 | AGH143391 | 0.23/0.36mm (0.009/0.014") | 300cm | 20cm | 20cm | Straight
ASAHI Conquest Pro 12 / Confianza Pro 12 | AGH143391P | 0.23/0.36mm (0.009/0.014") | 300cm | 20cm | 20cm | Pre-shape

Trademarks / Legal
“ASAHI Conquest” and “Confianza Pro” are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.

Caractéristiques / spécifications techniques

• Tip Load: 9gf / 12gf
• Tip Shape: Straight or Pre-shape (1mm 45° Pre-shape available)
• Outer diameter options: 0.23 / 0.36 mm (0.009 / 0.014")
• Usable length options: 190 cm, 300 cm
• Radiopaque length: 20 cm
• Coating: Uncoated Tip & Hydrophilic Coating
• Coil length: 20 cm
