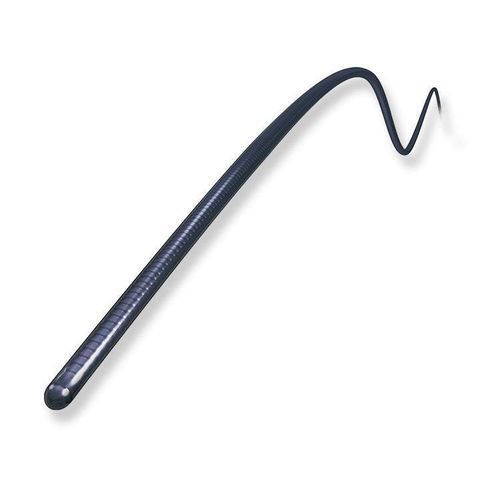

Catheter guidewire Fielder XT-A

coronaryhydrophilic

Overview
Standard tapered, low tip-load, polymer-jacketed guidewire designed for channel crossing and tracking through loose tissue. Intended for channel crossing, occluded lesions and collateral channel navigation beyond Fielder XT.

Key features

• Available variants: Fielder XT-A and Fielder XT-R.
• Tip load: XT-A 1.0 gf; XT-R 0.6 gf — optimized for channel crossing, subtotal occlusion and loose tissue tracking.
• Trackability: Balanced flexibility and control for improved channel tracking and subtotal occlusion navigation (99% reach in internal tests).
• Torque response: Enhanced torque control for precise tip orientation.
• Small tip shapeability: Tapered, small-radius tip for negotiating collateral channels and loose tissue.
• Coating: Polymer + Hydrophilic for improved surface performance.
• Radiopaque segment: 16 cm radiopaque length for fluoroscopic visualization.
• Usable lengths: 190 cm and 300 cm available.

Product specifications

• Tip load: XT-A 1.0 gf; XT-R 0.6 gf
• Tip shape: Straight
• Radiopaque length: 16 cm
• Coating: Polymer + Hydrophilic
• Usable lengths: 190 cm / 300 cm
• Outer diameter: 0.26 / 0.36 mm (0.010 / 0.014")
• Coil length: 16 cm
• Coating length: 170 mm
• Structure: Structural diagrams available for Fielder XT-A and Fielder XT-R.

Order information (selected catalog items)

• Fielder XT-R — Catalog No. APW14R005S | Tip: Straight | Usable length: 190 cm | Outer Ø: 0.26/0.36 mm | Radiopaque: 16 cm | Coating: Polymer + Hydrophilic | Coating length: 170 mm
• Fielder XT-A — Catalog No. APW14R009S | Tip: Straight | Usable length: 190 cm | Outer Ø: 0.26/0.36 mm | Radiopaque: 16 cm | Coating: Polymer + Hydrophilic | Coating length: 170 mm
• Fielder XT-R — Catalog No. APW14R305S | Tip: Straight | Usable length: 300 cm | Outer Ø: 0.26/0.36 mm | Radiopaque: 16 cm | Coating: Polymer + Hydrophilic | Coating length: 170 mm
• Fielder XT-A — Catalog No. APW14R309S | Tip: Straight | Usable length: 300 cm | Outer Ø: 0.26/0.36 mm | Radiopaque: 16 cm | Coating: Polymer + Hydrophilic | Coating length: 170 mm

Notes

• All data obtained by company standardized tests and may differ from industry standardized tests.
• Test results do not guarantee identical performance for all devices or clinical outcomes.
• "Fielder" and "ACT ONE" are trademarks or registered trademarks of ASAHI INTECC CO., LTD.

Technical characteristics

• Brand: ASAHI INTECC
• Model: Fielder XT-A / Fielder XT-R
• Category: Guidewire; Complex & Chronic occlusion
• Available catalog numbers: APW14R005S, APW14R009S, APW14R305S, APW14R309S
