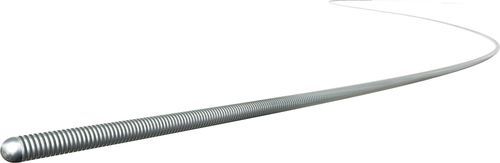

Catheter guidewire SION

coronaryhydrophilic

Product overview

• Guidewire with ACT ONE core for high torque response
• Full hydrophilic coating provides high tip lubricity

Precautions when removing the guide wire
Excerpt from Instructions for Use
d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube (B). (Figure 2)
f) Gently grasp the guide wire which came out from the distal end of the holder tube (or the distal end protection tube), at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.

Precautions for stent placement
Excerpt from Instructions for Use
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.

Technology
ACT ONE: This is a multi-wire coil using core technologies for wire drawing, wire forming, and torque. ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.

Product Spec (table)

• Tip Load: 0.7 gf
• Tip Shape: Straight / J-shape / Pre-shape
• Radiopaque Length: 3 cm
• Coating: Hydrophilic
• Usable Length: 180 cm* / 190 cm / 300 cm
• Structure: see image
• Category: #Guidewire, #Frontline

Order Information (selection of catalog variants)

• SION | AHW14R001J | J | 180 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm
• SION | AHW14R101S | Straight | 190 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm
• SION | AHW14R101J | J | 190 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm
• SION | AHW14R101P | Pre-shape | 190 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm
• SION | AHW14R301S | Straight | 300 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm
• SION | AHW14R301J | J | 300 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm
• SION | AHW14R301P | Pre-shape | 300 cm | 0.36 mm (0.014") | 0.7 gf | 28 cm | 3 cm | Hydrophilic | 280 mm

Notes
* All the data were obtained by company standardized test, which may differ from industry standardized tests. All the data do not prove that all devices have exactly the same performance with the samples used for these tests.
