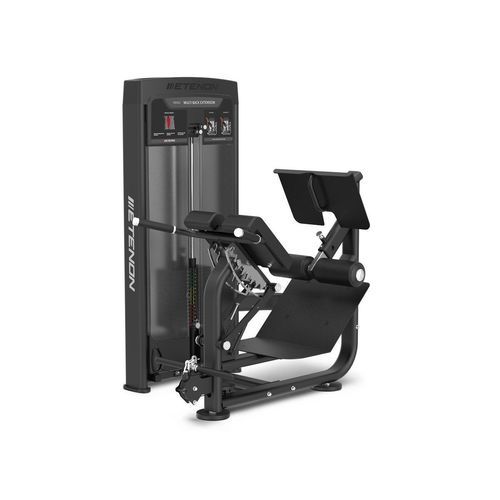

Back extension gym station R8403

Description
The Etenon adjustable lumbar extension is designed for training areas and professional fitness spaces. It provides a consistent feeling of stability, control and fluidity from the first repetition. The refined design and finish contribute to a professional appearance suitable for commercial gyms.

Technical features

• Frame manufactured from cold-rolled Q235A steel.
• Square tubes 40 × 140 mm and oval tubes 50 × 100 mm.
• Cable transmission system built for continuous use.
• Load adjustment by magnetic pin for quick and secure weight selection.
• Encased weight tower that protects the plate stack and limits access to moving parts.
• High-density cast-iron weight plates with textured black powder coating and Teflon rings to ensure smooth travel.
• Option to add two micro-weights of 2.5 kg each for finer increments.
• Rollers and supports made of high-density PU with antibacterial upholstery designed for sustained use.
• Thigh support height adjustable via a toothed structure.
• Roller height adjustable via a metal selector.
• Rubberized non-slip grips, 3.2 cm diameter, with an aluminum collar at the end.
• Front lower handle positioned to perform the exercise comfortably and guided.
• Double anti-slip foot base allows variation of working position to suit different users and executions, increasing versatility and comfort.
• Instruction pictogram illustrating correct execution and targeted muscle area.
• Base with PVC feet to aid fixation and protect the facility floor.

Dimensions and Weight

• Length: 124 cm
• Width: 112.5 cm
• Height: 160.2 cm
• Weight: 252.5 kg
• Maximum Plate Capacity: 117.5 kg

Characteristics / Technical specifications

• Frame material: cold-rolled Q235A steel.
• Profiles: square tubes 40×140 mm and oval tubes 50×100 mm.
• Transmission: durable cable system.
• Load selection: magnetic pin and option for micro-weights (2×2.5 kg).
• Plates: cast iron with textured powder coating and Teflon rings.
• Upholstery and rollers: high-density PU with antibacterial finish.
• Adjustments: thigh support adjustable in height; roller adjustable via metal selector.
• Grips: non-slip 3.2 cm diameter with aluminum collar.
• Accessories and safety: encased tower, execution pictogram, base with PVC feet and double anti-slip foot base.
• Main dimensions: 124 × 112.5 × 160.2 cm (L × W × H).
• Equipment weight: 252.5 kg; maximum plate capacity: 117.5 kg.
