Leg press gym station R8504

squat

Description

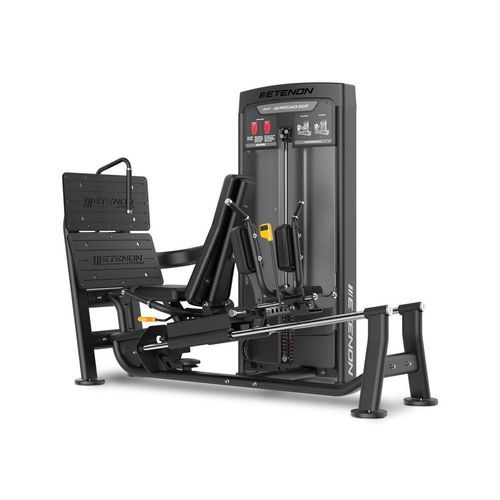

The R8504 dual leg press / hack squat by Etenon is a dual-station lower‑body strength machine designed for commercial and professional fitness facilities. It provides stable, controlled repetitions and a compact footprint suitable for intensive training environments.

Use and benefits
The dual configuration enables different lower‑limb movements from a single station without sacrificing movement quality. Versatile and space‑efficient, the unit is optimized for high utilization in gyms and training centers.

Technical features

• Frame manufactured from cold‑rolled Q235A steel for structural strength.
• Square tubes 40 × 140 mm and oval tubes 50 × 100 mm.
• Cable‑driven transmission system designed for continuous use.
• Load selection via magnetic pin for quick and secure weight changes.
• Shrouded weight tower protecting the stack and limiting access to moving parts.
• High‑density cast‑iron weight plates with textured black powder coating and Teflon rings for smooth travel.
• Option to add two microplates of 2.5 kg each for finer load increments.
• Seat, pads and backrest in high‑density PU with antibacterial upholstery suited for heavy use.
• Guide rails ensuring linear movement focused on lower limbs.
• Backrest adjustable up to 5 positions via external lateral selector.
• Seat adjustable in 9 positions via lateral selector to adapt carriage distance to the platform.
• Shoulder supports adjustable in 9 positions via lateral selector.
• Rubberized handles at the seat sides and above the support pads for improved stability and control in both exercises.
• Double non‑slip platform with variable inclinations to target different areas of the lower limb; front grip to assist entry and exit.
• Pictogram illustrating correct exercise execution and targeted muscle activation.
• Base equipped with PVC pads to facilitate anchoring and protect gym flooring.

Dimensions and Weight
Length: 142 cm
Width: 102 cm
Height: 185.5 cm
Weight: 369 kg
Maximum weight stack: 140 kg

Features / Technical specifications

• Q235A cold‑rolled steel frame with 40×140 mm and 50×100 mm tubing.
• Cable transmission and shrouded weight tower for stack protection.
• Magnetic pin load selector and option for 2.5 kg microplates.
• Cast‑iron plates with textured powder coating and Teflon rings for smooth displacement.
• Seat, backrest and pads in high‑density PU with antibacterial upholstery; seat 9‑position adjustable, backrest 5 positions.
• Shoulder supports adjustable in 9 positions and rubberized grips for enhanced control.
• Rail guidance for linear motion, double non‑slip platform with inclination options and exercise pictogram.
• Base with PVC pads to protect flooring.
• Dimensions: 142 × 102 × 185.5 cm; Weight: 369 kg; Max plate capacity: 140 kg.
