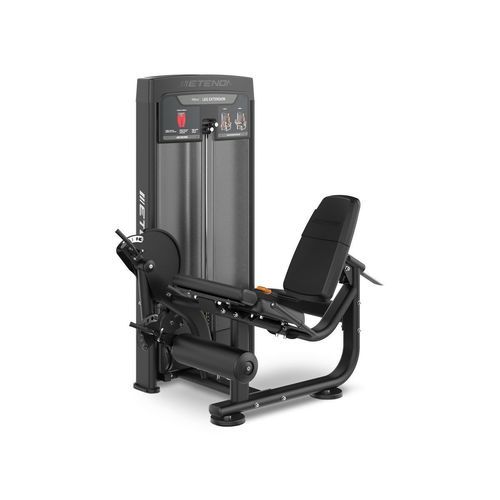

Leg extension gym station R8501

Description
The R8 leg extension is a seated quadriceps machine designed for controlled, precise lower‑limb training in commercial environments. Adjustable components and ergonomic supports enable correct positioning and consistent muscle activation across repetitions. Quick seat adjustment preserves training intensity and user throughput.

Technical features

• Frame built from cold‑rolled Q235A steel.
• Main profiles: 40 × 140 mm square tubes and 50 × 100 mm oval tubes.
• Durable cable transmission designed for continuous commercial use.
• Magnetic pin load selector for fast, secure weight changes.
• Enclosed weight tower protecting plates and limiting access to moving parts.
• Cast‑iron weight plates with textured black powder coating and Teflon rings for smooth travel.
• Two micro‑weights (2.5 kg each) available for fine load progression.
• Seat, roller and backrest in high‑density PU with antibacterial upholstery for heavy use.
• Split front‑raised seat design to support behind the knee and improve stability during exercise.
• Backrest adjustable in 8 positions via an accessible selector lever.
• Arm adjustable in 5 positions to modify muscle tension.
• Roller adjustable in 7 positions for correct alignment.
• Grips at both sides of the seat for user support during execution.
• Pictogram illustrating correct execution and targeted muscle area.
• Base with PVC feet to protect flooring and stabilize the unit.

Dimensions and weight

• Length: 139.4 cm
• Width: 108 cm
• Height: 160.2 cm
• Weight: 235.5 kg
• Maximum weight stack: 117.5 kg

Specifications

• Structure: cold‑rolled Q235A steel.
• Main profiles: 40×140 mm square, 50×100 mm oval.
• Transmission: heavy‑duty cable for continuous use.
• Load selection: magnetic pin; enclosed weight tower protection.
• Plates: cast iron with textured powder coat and Teflon rings.
• Micro‑loads: 2 × 2.5 kg.
• Upholstery: high‑density PU with antibacterial treatment.
• Adjustments: backrest 8 positions, arm 5 positions, roller 7 positions.
• Overall dimensions & weight: 139.4 × 108 × 160.2 cm; 235.5 kg; max plates 117.5 kg.
