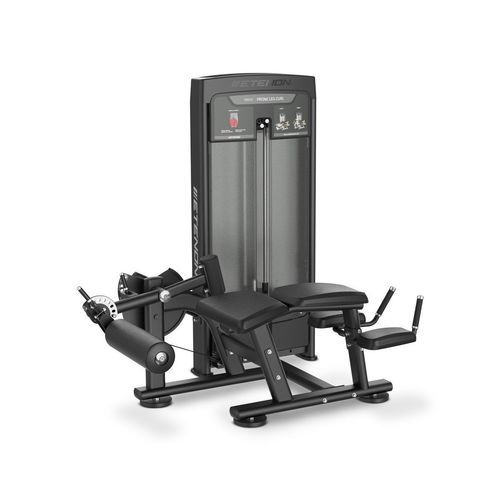

Leg curl gym station R8502

lying leg curl

Description
Develop lower-body strength with the Lying Leg Curl from Etenon, a machine engineered so each repetition is clean, controlled and fully focused on the target muscle. Its guided, natural motion isolates the hamstrings from the first repetition, maintaining constant tension throughout the range of motion and ensuring effective muscle engagement in every set.

Concept and use
Designed for commercial gyms seeking a performance-focused solution, this machine offers reliable mechanics and intuitive adjustments. It adapts to different users, encourages consistent training and turns a fundamental exercise into a more controlled and effective movement.

Technical features

• Structure in cold-rolled Q235A steel for high structural strength.
• Main tubes: square 40 × 140 mm and oval 50 × 100 mm.
• Transmission via heavy-duty cable designed for continuous use.
• Load adjustment with a magnetic pin for quick and secure weight selection.
• Shrouded weight stack that protects the plates and limits access to the moving area.
• High-density cast-iron weight plates with black textured powder coating and Teflon rings to ensure smooth travel.
• Option to add two micro-weights of 2.5 kg each for finer load progression.
• Seat, roller and backrest in high-density PU with antibacterial upholstery for continuous use.
• Biomechanically optimized frame to isolate the muscle and improve each repetition.
• Adjustable arm with 6 positions to vary knee angles and loading.
• Roller adjustable in 7 positions to fit user anatomy.
• Counterbalanced arm that reduces the initial load, providing a smoother start and more precise weight control throughout the movement.
• Rubberized handles with forearm support for greater comfort and stability during exercise.
• Illustrative pictogram showing correct execution and targeted muscle area.
• Base with PVC feet to improve anchoring and protect the facility floor.

Dimensions and Weight
Length: 164.1 cm
Width: 120.4 cm
Height: 160.2 cm
Weight: 248.5 kg
Maximum plate load: 117.5 kg

Reference
Ref: R8502

Characteristics / Technical specifications

• Frame material: cold-rolled Q235A steel.
• Main tubes: square 40×140 mm and oval 50×100 mm.
• Transmission: heavy-duty cable for continuous use.
• Load adjustment: magnetic pin and option to add two 2.5 kg micro-weights.
• Shrouded weight stack for plate protection.
• Plates: high-density cast iron with black textured powder coating and Teflon rings.
• Seat/roller/backrest: high-density PU with antibacterial upholstery.
• Arm adjustable in 6 positions; roller adjustable in 7 positions.
• Counterbalanced arm for a smoother movement start.
• Rubberized grips and forearm support; base with PVC feet.
• Dimensions and weight: 164.1×120.4×160.2 cm; 248.5 kg; maximum plate load 117.5 kg.
