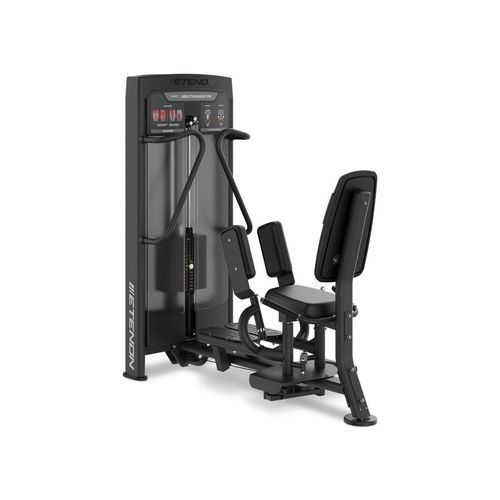

Leg abduction gym station R8505

leg adduction

Description
The R8505 Abductor/Adductor by Etenon delivers controlled, biomechanically aligned hip abduction and adduction. Its arcing movement follows natural hip motion to ensure smooth, comfortable and effective repetitions. Switching between abduction and adduction is quick and intuitive, enabling uninterrupted, focused training for glute and inner-thigh muscles.

Technical features

• Frame made from cold-rolled Q235A steel for structural strength.
• Square tubes 40 × 140 mm and oval tubes 50 × 100 mm for reinforced support.
• Cable transmission system designed for continuous commercial use.
• Magnetic pin load selector for fast and secure weight changes.
• Enclosed weight stack tower that protects plates and limits access to moving parts.
• High-density cast-iron weight plates with textured black powder coating and Teflon bushings for smooth travel.
• Provision for two micro-weights of 2.5 kg each to enable smaller load increments.
• Seat, pads and backrest in high-density PU with antibacterial upholstery for frequent use.
• Leg supports rotate to allow both abduction and adduction exercises.
• Ergonomic backrest set at 105° to maintain an optimal position during exercise.
• Lateral range-of-motion adjustment accessible from the seat.
• Upper-to-mid tower grab bar to assist body positioning during use.
• Rubberized handles on seat sides to provide stability and control.
• Dual textured anti-slip foot bases for secure foot placement.
• Exercise pictogram showing correct execution and target muscle area.
• Base with PVC feet to protect facility flooring.

Dimensions and Weight

• Length: 153.6 cm
• Width: 73 cm
• Height: 168.9 cm
• Weight: 253.5 kg
• Maximum weight stack capacity: 117.5 kg

Features / Technical specifications

• Frame material: cold-rolled Q235A steel.
• Profiles: 40×140 mm square tubes and 50×100 mm oval tubes.
• Transmission: heavy-duty cable for continuous commercial use.
• Load selection system: magnetic pin + enclosed weight stack tower.
• Weights: high-density cast-iron plates with textured powder coating and Teflon bushings.
• Micro-weights: provision for two 2.5 kg micro-weights.
• Upholstery: high-density PU with antibacterial treatment.
• Functionality: abduction and adduction via rotating leg supports.
• Ergonomics: 105° backrest and lateral amplitude adjustment.
• Safety and accessories: rubberized grips, support bar, dual anti-slip foot bases and PVC-footed base.
• Detailed dimensions and weight: 153.6×73×168.9 cm, 253.5 kg; maximum plate capacity 117.5 kg.
