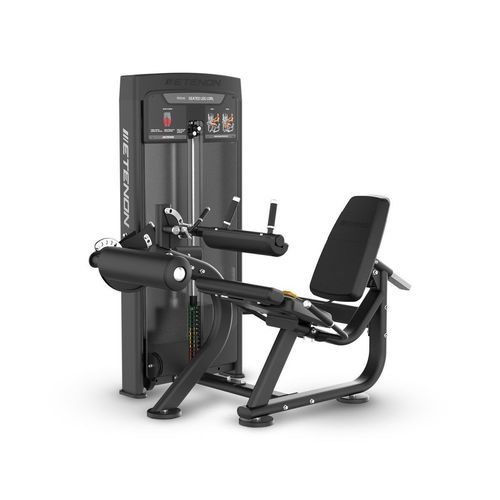

Leg curl gym station R8506

Description
The seated leg curl is designed to target the posterior thigh musculature, combining effective load application with user comfort. The R8 line model offers guided mechanics that ensure a stable, controlled movement, improving muscle contraction and the overall quality of the exercise.
Intuitive adjustments allow easy adaptation to each user to guarantee correct positioning from the start. The quick seat adjustment system enables maintaining training intensity without interruptions, delivering a smooth, professional experience at all times.

Technical features

• Frame manufactured in Q235A cold-rolled steel for high durability.
• Structural profiles: square tubes 40 × 140 mm and oval tubes 50 × 100 mm.
• Transmission via heavy-duty cable designed for continuous use.
• Load selection via magnetic pin for fast and secure weight changes.
• Covered weight tower that protects the plates and limits access to moving zones.
• High-density cast iron weight plates with special textured black powder coating, fitted with Teflon rings for smoother travel.
• Option to add two micro-weights of 2.5 kg each for finer load increments.
• Counterbalanced arm reduces the initial load of the movement, providing a smoother start and more precise control throughout the range.
• Seat, roller and backrest upholstered in high-density PU with antibacterial finish suitable for continuous use.
• Split seat design with a raised front section that provides additional support behind the knee, improving stability and comfort during the exercise.
• Height-adjustable backrest with 8 positions via an accessible selector lever from the seat.
• Height-adjustable support pad to accommodate different user anatomies.
• Arm adjustable in 5 positions to increase or decrease tension.
• Roller adjustable in 7 positions for precise alignment.
• Handles on the support pad and on both sides of the seat for improved user comfort during execution.
• Instructional pictogram illustrating correct exercise execution and targeted muscle area.
• Base with PVC feet to protect flooring and improve stability.

Dimensions and weight

• Length: 171.6 cm
• Width: 121.1 cm
• Height: 160.2 cm
• Weight: 263.5 kg
• Maximum plate weight: 117.5 kg

Technical characteristics / specifications

• Frame material: Q235A cold-rolled steel.
• Profiles: square tubes 40×140 mm and oval tubes 50×100 mm.
• Transmission: durable cable for continuous operation.
• Load adjustment: magnetic pin; possibility to add two 2.5 kg micro-weights.
• Covered weight tower and cast iron plates with textured black powder coating and Teflon rings.
• Counterbalance system on the arm for a soft movement start.
• Upholstery: high-density PU with antibacterial finish on seat, roller and backrest.
• Split seat with raised front section to support behind the knee.
• Backrest adjustable in 8 positions; arm adjustable in 5 positions; roller adjustable in 7 positions.
• Side and pad handles; instructional pictogram included.
• Base with PVC feet for floor protection.
• Dimensions and weights: Length 171.6 cm, Width 121.1 cm, Height 160.2 cm, Weight 263.5 kg, Maximum plate weight 117.5 kg.
