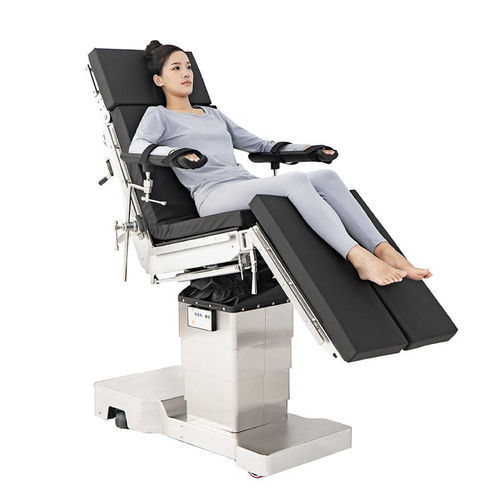

Neurosurgery operating table FY-V03Dl
radiologyurologyorthopedic

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 2

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 3

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 4

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 5

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 6

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 7

Neurosurgery operating table - FY-V03Dl - Jiangsu Fuyou Medical - radiology / urology / orthopedic - image - 8

Add to favorites

Compare this product

Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications: gynecological, orthopedic, urology, neurosurgery, radiology
Operation: electric, hydraulic
Features: adjustable height, tilting, mobile, radiolucent
Components: with legrest, with armrest, with sliding tabletop
Material: stainless steel
Total length: 210 cm
(82.7 in)
Total width: 55 cm
(21.7 in)

Description

Description
This electro-hydraulic operating table FY-V03Dl is designed for a wide range of surgical disciplines including general surgery, gynecology, obstetrics, proctology, urology and orthopaedics. The radiolucent tabletop and 300mm longitudinal movement allow flexible C-arm/X-ray access to different body regions. The ultra-low position supports neurosurgical requirements. Height, back section, Trendelenburg, lateral tilt and longitudinal movements are controlled electro-hydraulically; head board is adjusted manually and the leg section uses air-spring assistance. Constructed in full premium 304 stainless steel with a mobile stainless steel base on castors with central brake. Safety and usability features include one-key 0 position, one-key flex/reflex, emergency stop, power and battery indicators, plus dual controllers (hand remote and column-mounted).

Functions / Features

Suitable for general, gynecology, obstetric, proctology, urology and orthopaedic operations
Radiolucent tabletop for X-ray and C-arm imaging
Ultra-low position design suitable for neurosurgery
Electro-hydraulic drive for smooth and quiet adjustments
Electro-hydraulic control of height, back section, Trendelenburg, lateral tilt and longitudinal movement
Manual head board adjustment; leg section with air spring assistance
Full premium 304 stainless steel construction; mobile base on castors with central brake
One-key 0 position; one-key flex and reflex; emergency stop; power and battery indicators
Double controller system: hand remote and column controller

Technical details (table)
Dimensions: 2100*550mm
Height Adjustment (electro hydraulic): 550-1050mm
Trendelenburg (electro hydraulic): ±30°
Lateral Tilt (electro hydraulic): ±20°
Back Section (electro hydraulic): +85°/-40°
Head Board (manual): +45°/-90°
Leg Board (manual): +30°/-90°
Table Top Longitudinal Moving (electro hydraulic): 300mm
Build-in Kidney Elevator (manual): 0-120mm

Standard accessories

Shoulder supports: 2pcs
Waist supports: 2pcs
Arm supports: 2pcs
Leg supports: 2pcs
Anesthetic screen frame: 1pc
Mattress: 1pc
Hand controller: 1pc
Controller on the column: 1pc
Power line: 1pc
Storage battery: 1set
Cassette holder: 1set

Technical specifications

Model: FY-V03Dl
Material: Full premium 304 stainless steel
Dimensions: 2100*550mm
Height range: 550-1050mm
Trendelenburg: ±30°
Lateral tilt: ±20°
Back section range: +85°/-40°
Head board range: +45°/-90°
Leg board range: +30°/-90°
Longitudinal movement: 300mm
Kidney elevator: 0-120mm (manual)
Control: Electro-hydraulic with hand remote and column controller
Extras: One-key 0 position, flex/reflex, emergency stop, power and battery indicators
