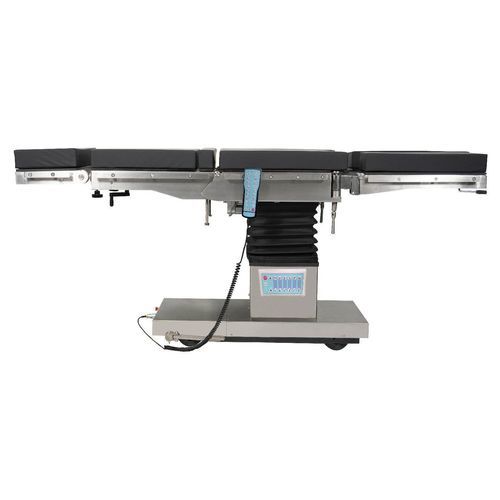

Universal operating table FY-503-E3

radiologyurologyorthopedic

Overview
The FY-503-E3 operating table is a five-motor electrically adjustable surgical table designed for procedures requiring intraoperative C-arm or X‑ray imaging. Its radiolucent tabletop and 300 mm longitudinal travel facilitate imaging of different body regions without repositioning the patient.

Key features

• Suitable for general, gynecology, obstetrics, proctology, urology and orthopaedics procedures
• Radiolucent table top with 300 mm electric longitudinal movement for C‑arm/X‑ray access
• Five electric adjustments: height, back section, Trendelenburg, lateral tilt and longitudinal travel
• Head board manual adjustment; leg section with air spring adjustment
• Dual controller system: hand-held remote and column-mounted control
• One-key 0 position, one-key flex/reflex, memory key, emergency stop, power and battery indicators

Technical specifications

• Dimensions: 2100 × 530 mm
• Height adjustment (electric): 700–1000 mm
• Trendelenburg (electric): ±30°
• Lateral tilt (electric): ±20°
• Back section (electric): +70° / -30°
• Head board (manual): +45° / -90°
• Leg board (manual): +15° / -90°
• Table top longitudinal moving (electric): 300 mm
• Built-in kidney elevator (manual): 0–120 mm

Materials & safety

• Table top: radiolucent material suitable for intraoperative imaging
• Frame/base: full premium 304 stainless steel with mobile base and central brake
• Drive: Jiechang brand motors ensuring smooth, low-noise operation
• Safety features: emergency stop switch, memory function, power and storage battery indicators

Applications

• Designed for operating rooms requiring frequent intraoperative imaging and versatile patient positioning
• Commonly used in general surgery, gynecology/obstetrics, urology, proctology and orthopaedics
