Urology operating table FY800M
ophthalmicradiologyelectric

Urology operating table - FY800M - Jiangsu Fuyou Medical - ophthalmic / radiology / electric

Urology operating table - FY800M - Jiangsu Fuyou Medical - ophthalmic / radiology / electric

Urology operating table - FY800M - Jiangsu Fuyou Medical - ophthalmic / radiology / electric - image - 2

Urology operating table - FY800M - Jiangsu Fuyou Medical - ophthalmic / radiology / electric - image - 3

Urology operating table - FY800M - Jiangsu Fuyou Medical - ophthalmic / radiology / electric - image - 4

Add to favorites

Compare this product

Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications

urology, ophthalmic, radiology

Operation

electric

Features

radiolucent, adjustable height, tilting

Components

with sliding tabletop, with armrest, with headrest, with legrest

Material

stainless steel

Total length

Min.: 205 cm
(80.7 in)

Max.: 215 cm
(84.6 in)

Total width

Min.: 45 cm
(17.7 in)

Max.: 55 cm
(21.7 in)

Description

Description

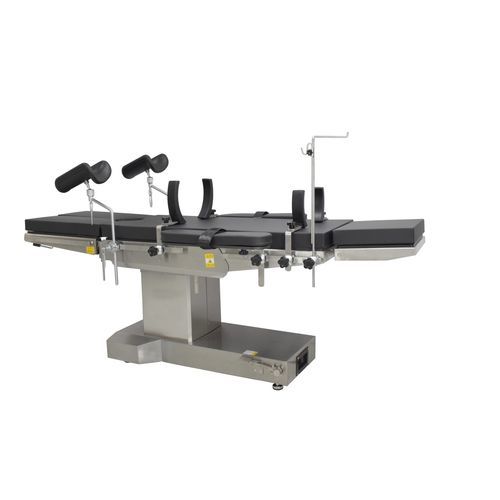

The FY800M ophthalmic electric operating table is designed for use in ophthalmology and other surgical specialties. It integrates an electric drive system, control unit, high-strength X-ray compatible tabletop, a full 304 stainless steel frame and a stable T-shaped base suitable for hospital operating rooms. The table supports C-arm imaging and offers multiple electric adjustments for precise patient positioning.

Advantages

Main position adjustments (table height, tilt forward/backward, lateral tilt, backboard up/down and longitudinal translation) are performed via push-button controls and electric actuators for smooth, precise movement.
Longitudinal tabletop movement (≥ 400 mm) enables C-arm access for radiographic imaging; tabletop is high-strength transparent material and mattress is soft sponge with optional memory foam mattress.
Detachable leg board with manual rotation for abduction and folding simplifies urology and ophthalmic positioning.
Handheld controller operates at 24 V DC for safe and easy operation.

Technical Parameters (text section)
Table length × width (text): 2010 mm × 500 mm ± 50
Minimum × maximum tabletop (text): 700 mm × 1000 mm
Maximum table tilt: forward ≥ 25°; backward ≥ 20°
Maximum left/right tilt: ≥ 20° each
Leg board adjustment: downward folding ≥ 90°; detachable outward abduction 180°
Backboard adjustment: up fold ≥ 75°; down fold ≥ 10°
Head board adjustment: up fold ≥ 45°; down fold ≥ 90°; detachable
Translation function: ≥ 400 mm
Waist bridge lift distance: 120 mm

Detailed specification table
Table length × width — 2100 mm × 500 mm (± 50)
Minimum × maximum tabletop — 650 mm × 950 mm
Maximum table tilt — forward ≥ 25°; backward ≥ 25°
Maximum left/right tilt — ≥ 20° each
Leg board adjustment — downward folding ≥ 90°; detachable outward abduction 180°
Backboard adjustment — up fold ≥ 80°; down fold ≥ 10°
Head board adjustment — up fold ≥ 30°; down fold ≥ 90°; detachable
Waist bridge lift distance — ≥ 120 mm

Included accessories

Operating table — 1 unit
Arm boards — 2
Leg rests — 2
Shoulder supports — 2
Lumbar supports — 2
Anesthesia screen holder — 1
Square sliders — 7
Smooth blocks — 2
Control handle — 1
Power line — 1
Instructions — 1 copy
Certificate of conformity — 1 copy

Technical specifications

Model: FY800M
Frame material: full 304 stainless steel
Drive: electric motor and electric push rods
Controller: handheld 24 V DC
C-arm compatibility: longitudinal translation ≥ 400 mm
Leg board: detachable, folding ≥ 90°, abduction outward 180°
Backboard: up ≥ 75° (text) / ≥ 80° (table), down ≥ 10°
Head board: up ≥ 45° (text) / ≥ 30° (table), down ≥ 90°, detachable
Mattress: sponge pad (optional memory foam)
