Oxygen medical gas supply and management unit

CO2carbon dioxideN2O

Product Description

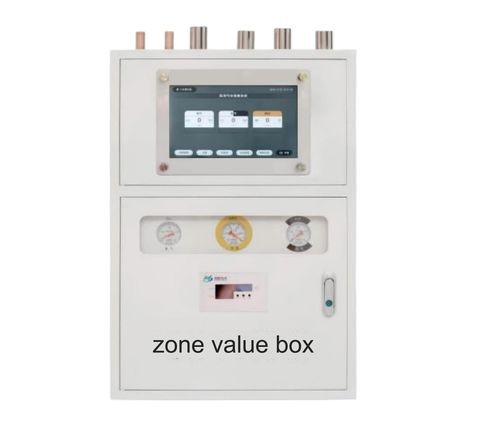

• Regional valve alarm box designed for medical gas monitoring and alarm in healthcare facilities.
• Available with 1 to 6 independent gas control channels to match installation requirements.
• Pipeline materials: copper tubing or 304 stainless steel tubing; inlet/outlet layout configurable (top-top or left-in/right-out) to suit different installation spaces.
• Connections use three-piece stainless steel ball valves or union-type copper ball valves for reliable sealing and straightforward maintenance.
• All pipelines undergo standard degreasing and cleaning; each gas path is identified using ISO32 standard color coding.
• Operating conditions: ambient temperature -20℃ to 60℃; ambient humidity 10%–95%.
• Pressure resistance: oxygen, medical air (respiration), nitrous oxide, carbon dioxide — 0.8MPa; nitrogen and power air — 1.2MPa; negative pressure — -0.075MPa.
• Customizable with optional digital or LCD alarm modules, flowmeters and other accessories per project specifications.

Technical table
Pipe diameters: multiple options, 1–6 gas control channels
Pipeline material: copper tube or 304 stainless steel tube
Pipe layout: top inlet/top outlet or left inlet/right outlet
Piping connection: three-piece stainless steel ball valve or union-type copper ball valve
Gas identification: ISO32 standard color coding per gas path
Applicable ambient temperature: -20℃~60℃
Ambient humidity: 10%~95%
Oxygen/medical air/nitrous oxide/carbon dioxide pressure rating: 0.8MPa
Nitrogen/power air pressure rating: 1.2MPa
Negative pressure rating: -0.075MPa

Features / technical specifications

• Product type: Regional valve alarm box for medical gas monitoring and alarm.
• Materials: copper pipe or 304 stainless steel pipe.
• Gas channels: configurable from 1 to 6 independent channels.
• Valve connection: three-piece stainless steel ball valve or union-type copper ball valve.
• Color coding: ISO32 standard identification for each gas path.
• Operating temperature range: -20℃ to 60℃.
• Operating humidity range: 10% to 95%.
• Pressure resistance: O2/medical air/N2O/CO2 up to 0.8MPa; N2 and power air up to 1.2MPa; negative pressure up to -0.075MPa.
• Surface treatment: standard degreasing and cleaning of pipeline.
• Customization: optional digital/LCD alarm units, flowmeters and other devices available on request.
