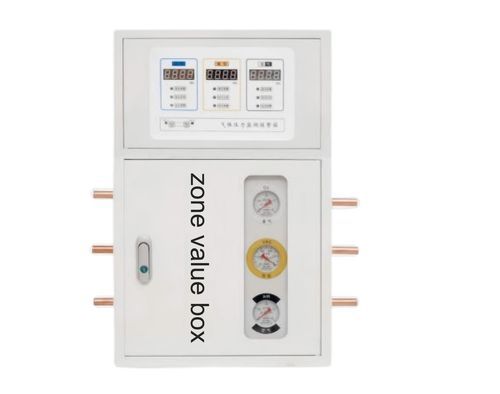

Medical gas pipeline system alert system Regional Valve Alarm Box

for medical gasfor MGPS

Product Description

• Multiple pipe diameters are available, and 1–6 gas control channels can be configured to project requirements.
• Pipeline materials: copper tube or 304 stainless steel tube. Pipe layout options: top inlet/top outlet or left inlet/right outlet to suit varied installation conditions.
• Pipeline connections: three-piece stainless steel ball valve or union-type copper ball valve for secure airtight joints and simplified maintenance.
• Pipeline surface: standard degreasing and cleaning applied prior to assembly.
• Each gas path is identified using ISO32 standard color coding.
• Applicable ambient temperature: -20℃ to 60℃; ambient humidity: 10% to 95%.
• Pressure resistance: oxygen, medical air (respiratory), nitrous oxide and carbon dioxide withstand 0.8 MPa without leakage.
• Nitrogen and instrument/power air withstand 1.2 MPa without leakage.
• Negative pressure resistance: -0.075 MPa without leakage.
• Customizable: supports optional digital or LCD alarm modules, flow meters and other monitoring devices.

Technical Table
Multiple pipe diameters: 1–6 gas control channels
Pipeline optional: Copper tube or 304 stainless steel tube
Pipe layout: Top inlet & top outlet OR left inlet & right outlet
Piping connection: Three-piece stainless steel ball valve or union-type copper ball valve
Gas path identification: ISO32 standard color coding
Applicable ambient temperature: -20℃ to 60℃
Ambient humidity: 10%–95%
Oxygen, medical air, nitrous oxide, CO2 pressure: 0.8 MPa
Nitrogen, instrument/power air pressure: 1.2 MPa
Negative pressure: -0.075 MPa

Technical Specifications

• Product type: Regional valve alarm box for medical gas systems.
• Available pipe diameters: multiple options supporting 1 to 6 gas control channels.
• Pipeline materials: copper tube or 304 stainless steel tube (optional).
• Pipe layout options: top inlet & top outlet OR left inlet & right outlet.
• Connection methods: three-piece stainless steel ball valve or union/articulated copper ball valve for reliable airtightness and simplified maintenance.
• Surface preparation: standard degreasing and cleaning of pipelines.
• Gas identification: ISO32 color coding per gas path.
• Operating ambient temperature range: -20℃ to 60℃.
• Operating ambient humidity range: 10% to 95%.
• Pressure ratings: O2/medical air/N2O/CO2 withstand 0.8 MPa without leakage; N2/instrument air withstand 1.2 MPa without leakage; negative pressure withstand -0.075 MPa without leakage.
• Customization options: digital/LCD alarm displays, flow meters and other monitoring accessories available on request.
