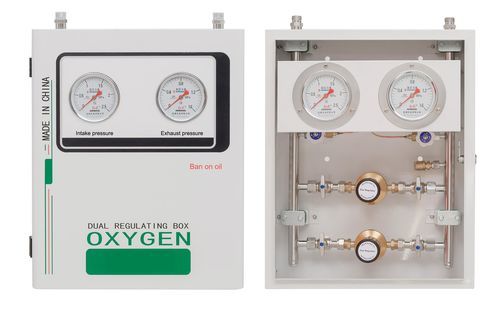

O2 pressure reducer station Oxygen Secondary Pressure Reducing Boxoxygenmedicalfor hospitals
Add to favorites
Compare this product
Characteristics
- Fluid type
- O2, oxygen
- Applications
- medical, for hospitals
- Features
- double, high-flow
- Flow
Min.: 300 l/min
(79.25 us gal/min)Max.: 100,000 l/min
(26,417.21 us gal/min)- Inlet pressure
Min.: 6 bar
(87 psi)Max.: 8 bar
(116 psi)- Output pressure
Min.: 3.5 bar
(50.8 psi)Max.: 6 bar
(87 psi)- Height
Min.: 42 cm
(16.5 in)Max.: 42 cm
(16.5 in)- Width
Min.: 45 cm
(17.7 in)Max.: 45 cm
(17.7 in)- Depth
Min.: 17 cm
(6.7 in)Max.: 17 cm
(6.7 in)
Description
Product Overview
Adopting a dual-circuit design: when one circuit fails it can be switched to the other, enabling uninterrupted gas supply without pressure interruption and meeting the continuous-supply-under-single-fault requirement of GB 50751-2013 Technical Specification for Medical Gas Engineering. Provides testing report in accordance with GB 50751-2012 Technical Specification for Medical Gas Engineering.
Technical Details
The pipeline adopts a dual-circuit design, with one circuit for backup and one for use
Box size: 420 mm × 450 mm × 170 mm
Import pressure (P1): 0.6–0.8 MPa; Export pressure (P2): 0.35–0.6 MPa (adjustable)
High-performance pressure reducer with a maintenance- and adjustment-friendly structure
Degreased seamless stainless steel 304 pipeline
Equipped with safety valves to ensure product safety and reliability
Medium: Oxygen; Flow rate ≥ 300 L/min
Static characteristic: P2 pressure increased by 0.06 MPa
Optional bypass valve for simplified maintenance
Specifications
Adopting a dual-circuit design: when one circuit fails it can be switched to the other, enabling uninterrupted gas supply without pressure interruption and meeting the continuous-supply-under-single-fault requirement of GB 50751-2013 Technical Specification for Medical Gas Engineering. Provides testing report in accordance with GB 50751-2012 Technical Specification for Medical Gas Engineering.
Technical Details
The pipeline adopts a dual-circuit design, with one circuit for backup and one for use
Box size: 420 mm × 450 mm × 170 mm
Import pressure (P1): 0.6–0.8 MPa; Export pressure (P2): 0.35–0.6 MPa (adjustable)
High-performance pressure reducer with a maintenance- and adjustment-friendly structure
Degreased seamless stainless steel 304 pipeline
Equipped with safety valves to ensure product safety and reliability
Medium: Oxygen; Flow rate ≥ 300 L/min
Static characteristic: P2 pressure increased by 0.06 MPa
Optional bypass valve for simplified maintenance
Specifications
- Dual-circuit pipeline design (one backup, one in use)
- Box size: 420 mm × 450 mm × 170 mm
- Import pressure (P1): 0.6–0.8 MPa
- Export pressure (P2): 0.35–0.6 MPa (adjustable)
- High-performance pressure reducer with maintenance-friendly structure
- Degreased seamless stainless steel 304 pipeline
- Equipped with safety valves for reliability and safety
- Medium: Oxygen; Flow rate ≥ 300 L/min
- Static characteristic: P2 pressure increased by 0.06 MPa
- Optional bypass valve for easy maintenance
