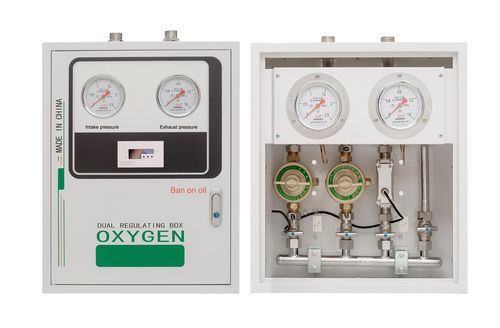

Air pressure reducer station medicaldual-stagehigh-flow
Add to favorites
Compare this product
Characteristics
- Fluid type
- air
- Applications
- medical
- Number of stages
- dual-stage
- Features
- high-flow
- Flow
Max.: 100,000 l/min
(26,417.21 us gal/min)Min.: 300 l/min
(79.25 us gal/min)- Inlet pressure
Max.: 8 bar
(116 psi)Min.: 6 bar
(87 psi)- Output pressure
Max.: 6 bar
(87 psi)Min.: 3.5 bar
(50.8 psi)- Height
Max.: 42 cm
(16.5 in)Min.: 42 cm
(16.5 in)- Width
Max.: 45 cm
(17.7 in)Min.: 45 cm
(17.7 in)- Depth
Max.: 17 cm
(6.7 in)Min.: 17 cm
(6.7 in)
Description
Product description
Dual-circuit design enables automatic or manual switching from a failed circuit to the standby circuit to maintain uninterrupted gas supply. Designed for medical gas distribution systems and intended to meet the "continuous gas supply under a single fault" requirement stipulated in GB 50751-2013 "Technical Specification for Medical Gas Engineering". Provides the testing report of GB 50751-2012.
Details
Pipeline layout: one backup, one in use for simplified maintenance and rapid switchover.
Box size: 420 mm × 450 mm × 170 mm
Import pressure (P1): 0.6~0.8 MPa
Export pressure (P2): 0.35~0.6 MPa (adjustable)
Precision pressure gauge with integrated safety valve
Medium: Air; Flow rate ≥ 300 L/min
Static characteristic: P2 pressure increase 0.06 MPa under specified condition
Brass pressure regulator and brass maintenance valve
Degreased seamless stainless steel 304 pipeline, suitable for medical gas applications
Characteristics / technical specifications
Dual-circuit design enables automatic or manual switching from a failed circuit to the standby circuit to maintain uninterrupted gas supply. Designed for medical gas distribution systems and intended to meet the "continuous gas supply under a single fault" requirement stipulated in GB 50751-2013 "Technical Specification for Medical Gas Engineering". Provides the testing report of GB 50751-2012.
Details
Pipeline layout: one backup, one in use for simplified maintenance and rapid switchover.
Box size: 420 mm × 450 mm × 170 mm
Import pressure (P1): 0.6~0.8 MPa
Export pressure (P2): 0.35~0.6 MPa (adjustable)
Precision pressure gauge with integrated safety valve
Medium: Air; Flow rate ≥ 300 L/min
Static characteristic: P2 pressure increase 0.06 MPa under specified condition
Brass pressure regulator and brass maintenance valve
Degreased seamless stainless steel 304 pipeline, suitable for medical gas applications
Characteristics / technical specifications
- Design: Dual circuit (one backup, one in use) ensuring continuous gas supply under single fault
- Box size: 420 mm × 450 mm × 170 mm
- Import pressure (P1): 0.6~0.8 MPa
- Export pressure (P2): 0.35~0.6 MPa (adjustable)
- Medium: Air; Flow rate ≥ 300 L/min
- Static characteristic: P2 pressure increase 0.06 MPa
- Instrumentation: Precision pressure gauge with safety valve
- Materials: Brass pressure regulator and brass maintenance valve; degreased seamless stainless steel 304 pipeline
