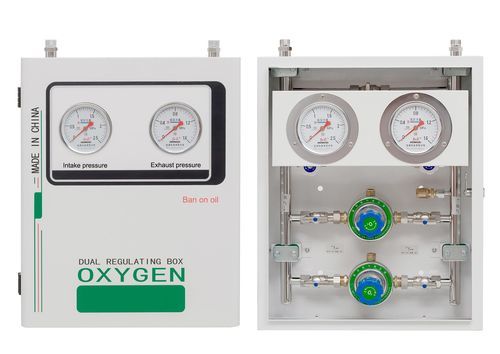

Medical gas pressure reducer station Oxygen Secondary Pressure Reducing Boxoxygenmedicaldual-stage
Add to favorites
Compare this product
Characteristics
- Fluid type
- for medical gas, oxygen
- Applications
- medical
- Number of stages
- dual-stage
- Features
- high-flow
- Flow
Min.: 300 l/min
(79.25 us gal/min)Max.: 100,000 l/min
(26,417.21 us gal/min)- Inlet pressure
Min.: 6 bar
(87 psi)Max.: 8 bar
(116 psi)- Output pressure
Min.: 3.5 bar
(50.8 psi)Max.: 6 bar
(87 psi)- Height
42 cm
(16.5 in)- Width
45 cm
(17.7 in)- Depth
17 cm
(6.7 in)
Description
Overview
Dual-circuit design allows immediate switch-over to the secondary circuit if the primary circuit fails, enabling continuous gas supply without pressure interruption and meeting the requirement of continuous gas supply under a single fault stipulated in GB 50751-2013 Technical Specification for Medical Gas Engineering. Testing report can be provided in accordance with GB 50751-2012.
Design and construction
Performance
Compliance and documentation
Dual-circuit design allows immediate switch-over to the secondary circuit if the primary circuit fails, enabling continuous gas supply without pressure interruption and meeting the requirement of continuous gas supply under a single fault stipulated in GB 50751-2013 Technical Specification for Medical Gas Engineering. Testing report can be provided in accordance with GB 50751-2012.
Design and construction
- Box dimensions: 420 mm × 450 mm × 170 mm
- Import pressure (P1): 0.6–0.8 MPa
- Export pressure (P2): 0.35–0.6 MPa (adjustable)
- Degreasing seamless stainless steel 304 pipeline for medical gas applications
- High-performance pressure reducer with accessible structure for maintenance and adjustment
- Configured safety valves to ensure operational safety and reliability
- Optional bypass valve available to facilitate maintenance without interrupting supply
Performance
- Medium: Oxygen
- Flow rate: ≥ 300 L/min
- Static characteristic: P2 pressure increase 0.06 MPa
Compliance and documentation
- Complies with GB 50751-2013 technical specification for medical gas engineering
- Testing report available per GB 50751-2012
