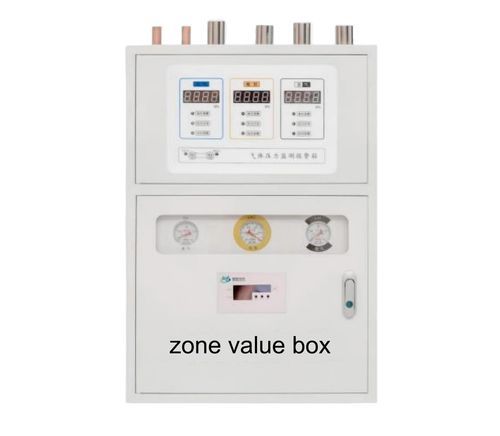

Oxygen medical gas supply and management unit

nitrous oxideCO2nitrogen

Overview

• Available in 1–6 gas control channels with multiple tubing diameters to accommodate different medical gas distribution layouts.
• Piping options: copper tubing or 304 stainless steel with top-in/top-out or left-in/right-out configurations for flexible installation.
• Connections via three-piece stainless steel ball valve or union-type copper ball valve to provide airtight joints and simplify maintenance.
• Pipelines are degreased and cleaned to medical installation standards.
• Each gas line uses ISO32 standard color coding for unambiguous gas identification.
• Operating environment: ambient temperature -20℃ to 60℃; humidity 10%–95%.
• Pressure ratings: Oxygen, medical air (respiratory), N2O, CO2: 0.8 MPa; Nitrogen and power air: 1.2 MPa; Negative pressure: -0.075 MPa.
• Customizable with optional digital or LCD alarm modules, flow meters and other monitoring devices.

Table
Multiple pipe diameters: 1–6 gas control channels
Pipeline option: Copper tube or 304 stainless steel tube
Pipe layout: Top-in/top-out or left-in/right-out
Piping connection: Three-piece stainless steel ball valve or union-type copper ball valve
Gas identification: ISO32 standard color coding
Operating temperature: -20℃~60℃
Ambient humidity: 10%～95%
Oxygen/Medical air/N2O/CO2 pressure rating: 0.8 MPa
Nitrogen/Power air pressure rating: 1.2 MPa
Negative pressure rating: -0.075 MPa

Technical specifications

• Materials: Copper or 304 stainless steel
• Pipe diameters: multiple sizes available
• Gas channels: configurable 1–6 channels
• Valve connection: three-piece stainless steel ball valve or union-type copper ball valve
• Gas color coding: ISO32 standard
• Operating temperature: -20℃ to 60℃
• Humidity range: 10% to 95%
• Pressure ratings: O2/Medical air/N2O/CO2: 0.8 MPa; Nitrogen/Power air: 1.2 MPa; Negative pressure: -0.075 MPa
• Options: digital or LCD alarm modules, flow meters, custom configurations
