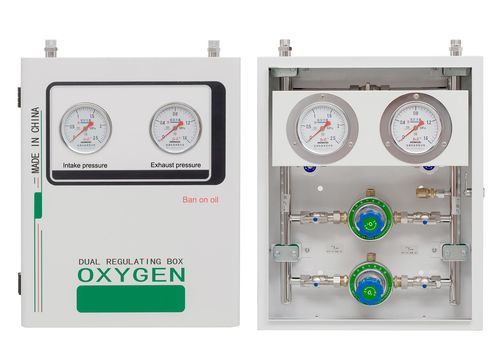

Oxygen pressure reducer station

medicalfor oxygen cylinders

Description
The unit uses a dual-circuit design: if one circuit fails it can be switched to the other to ensure uninterrupted gas delivery. It meets the requirement of continuous gas supply under a single fault specified in GB 50751-2013 Technical Specification for Medical Gas Engineering and a testing report per GB 50751-2012 is provided.

Product details
The pipeline is configured with one backup and one active line for simplified maintenance.
Box size: 420 mm × 450 mm × 170 mm.
Import pressure (P1): 0.6–0.8 MPa.
Export pressure (P2): 0.35–0.6 MPa (adjustable).
Pressure components: precision pressure gauge with safety valve.
Regulator and maintenance valve: brass.
Medium: Oxygen; Flow rate ≥ 300 L/min.
Pipeline: degreased seamless 304 stainless steel.

Specifications

• Design: Dual circuit allowing switch-over to maintain supply during a single-circuit fault
• Pipeline arrangement: one backup / one active for easy maintenance
• Box size: 420 × 450 × 170 mm
• Import pressure (P1): 0.6–0.8 MPa
• Export pressure (P2): 0.35–0.6 MPa (adjustable)
• Static characteristic: P2 pressure rise 0.06 MPa
• Pressure components: precision gauge with safety valve
• Regulator/valve: brass pressure regulator and brass maintenance valve
• Medium & flow: Oxygen; flow ≥ 300 L/min
• Pipeline material: degreased seamless 304 stainless steel
• Standards: Complies with GB 50751-2013; testing report available per GB 50751-2012
