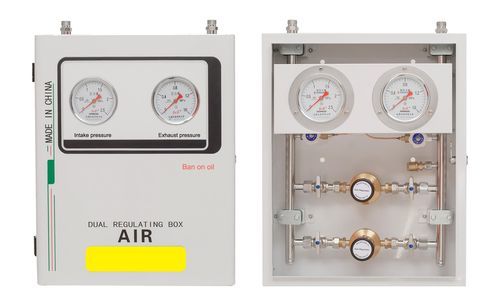

Air pressure reducer station Oxygen Secondary Pressure Reducing Box

medical gasoxygenmedical

Overview
Dual-circuit secondary pressure-reducing box for oxygen distribution. When one circuit is unavailable, the system switches to the standby circuit to maintain continuous gas supply without pressure interruption, complying with the 'continuous gas supply under a single fault' requirement of GB 50751-2013. Testing report available per GB 50751-2012.

Product details

• Pipeline design: one working circuit + one standby circuit for uninterrupted supply and simplified maintenance
• Box size: 420 mm × 450 mm × 170 mm
• Import pressure (P1): 0.6–0.8 MPa
• Export pressure (P2): 0.35–0.6 MPa (adjustable)
• Precision pressure gauge with integrated safety valve
• Pressure components: brass pressure regulator and brass maintenance valve
• Medium: air (Flow rate ≥ 300 L/min)
• Static characteristic: P2 pressure increase of 0.06 MPa
• Pipeline material: degreased seamless stainless steel 304
• Compliance: designed to meet GB 50751-2013 continuity requirement; testing report per GB 50751-2012 available

Technical specifications

• Application: Secondary pressure reduction for oxygen distribution in medical gas systems
• Configuration: Dual-circuit (one active, one standby) enabling automatic/manual switching
• Dimensions: 420 mm × 450 mm × 170 mm
• Import pressure P1: 0.6–0.8 MPa
• Export pressure P2 (adjustable): 0.35–0.6 MPa
• Flow capacity: ≥ 300 L/min (medium: air)
• Pressure stability: P2 variation up to +0.06 MPa under static condition
• Materials and components: degreased seamless SS304 pipeline; brass regulator and maintenance valve; precision gauge with safety valve
• Standards: Meets GB 50751-2013 continuity requirement; testing report available per GB 50751-2012
