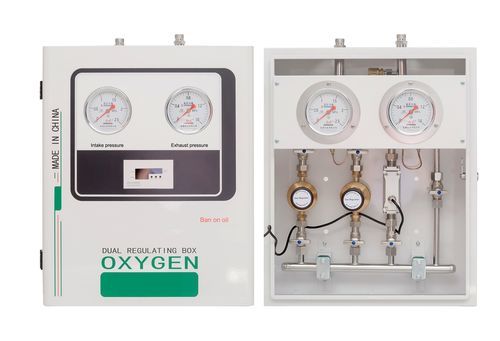

Air pressure reducer station oxygenfor hospitalsdual-stage
Add to favorites
Compare this product
Characteristics
- Fluid type
- air, oxygen
- Applications
- for hospitals
- Number of stages
- dual-stage
- Flow
Max.: 100,000 l/min
(26,417.21 us gal/min)Min.: 300 l/min
(79.25 us gal/min)- Inlet pressure
Max.: 8 bar
(116 psi)Min.: 6 bar
(87 psi)- Output pressure
Max.: 6 bar
(87 psi)Min.: 3.5 bar
(50.8 psi)- Height
Max.: 45 cm
(17.7 in)Min.: 45 cm
(17.7 in)- Width
Max.: 42 cm
(16.5 in)Min.: 42 cm
(16.5 in)- Depth
Max.: 17 cm
(6.7 in)Min.: 17 cm
(6.7 in)
Description
Product Overview
Adopting a dual-circuit design, when one circuit fails it can be switched to the other circuit; it enables uninterrupted gas maintenance without affecting outlet pressure, meeting the continuous gas supply under a single fault requirement in GB 50751-2013 Technical Specification for Medical Gas Engineering. Provides testing report according to GB 50751-2012.
Key Features
Technical Table
Pipeline design: one backup / one in use; Box size: 420 mm × 450 mm × 170 mm
Import pressure (P1): 0.6–0.8 MPa
Export pressure (P2): 0.35–0.6 MPa (adjustable)
Precision pressure gauge with safety valve
Medium: Air; Flow rate ≥ 300 L/min
Static characteristic: P2 pressure increase 0.06 MPa
Brass pressure regulator and brass maintenance valve
Degreased seamless stainless steel 304 pipeline
Technical Specifications
Adopting a dual-circuit design, when one circuit fails it can be switched to the other circuit; it enables uninterrupted gas maintenance without affecting outlet pressure, meeting the continuous gas supply under a single fault requirement in GB 50751-2013 Technical Specification for Medical Gas Engineering. Provides testing report according to GB 50751-2012.
Key Features
- Dual-circuit design (one backup, one in use) for maintenance convenience and continuous supply under single fault
- Precision pressure gauge with integrated safety valve
- Brass pressure regulator and brass maintenance valve
- Degreased seamless stainless steel 304 pipeline
Technical Table
Pipeline design: one backup / one in use; Box size: 420 mm × 450 mm × 170 mm
Import pressure (P1): 0.6–0.8 MPa
Export pressure (P2): 0.35–0.6 MPa (adjustable)
Precision pressure gauge with safety valve
Medium: Air; Flow rate ≥ 300 L/min
Static characteristic: P2 pressure increase 0.06 MPa
Brass pressure regulator and brass maintenance valve
Degreased seamless stainless steel 304 pipeline
Technical Specifications
- Box size: 420 mm × 450 mm × 170 mm
- Import pressure (P1): 0.6–0.8 MPa
- Export pressure (P2): 0.35–0.6 MPa (adjustable)
- Medium: Air
- Flow rate: ≥ 300 L/min
- Static characteristic: P2 pressure increase 0.06 MPa
- Components: Precision pressure gauge with safety valve; brass pressure regulator; brass maintenance valve
- Pipeline material: Degreased seamless stainless steel 304
- Design: Dual-circuit (one backup, one in use) enabling continuous gas supply under single fault
