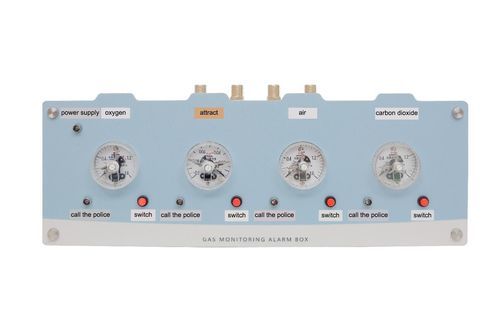

Pressure monitoring system Gas Pressure Alarm Series

for ICUfor healthcare facilityfor hospitals

Overview
The regional gas pressure alarm is designed for monitoring gas-supply pipeline pressure in hospital environments such as ward floors, nurse stations, operating rooms, ICU gas manifolds and gas valve cabinets. Pressure is shown in real time on a 0.8-inch digital tube. The pressure sensor connects to the pipeline and outputs a digital carrier signal; the host electronics respond to pressure changes to trigger alerts.

Key features

• Surface-mounted design for installation on gas distribution panels or cabinets
• High-precision pressure gauge, accuracy class 1.6 (electric contact)
• Real-time digital display (0.8-inch digital tube)
• Pressure sensor with digital carrier signal output for electronic monitoring
• Sound-and-light alarm method for immediate local indication
• Optional buzzer mute with automatic silent recovery (default recovery time: 10 minutes)
• Configurable for multiple gas types

Technical data
Mounting: surface mounted
Pressure gauge accuracy level: 1.6 level (electric contact)
Number of pressure monitoring points: 1–6 channels
Detection range: 0.1 MPa ~ 1 MPa (adjustable)
Alarm method: sound and light warning
Buzzer mute: supported (default silent recovery time 10 minutes; alarm reactivates on new abnormality)
Host power supply voltage: DC 24V ± 6%
Gas types: customizable (multi-gas support)

Technical specifications

• Mounting: Surface mounted
• Pressure gauge: Electric-contact type, accuracy class 1.6
• Display: 0.8-inch digital tube (real-time pressure)
• Monitoring channels: 1–6
• Detection range: 0.1 MPa to 1 MPa (adjustable)
• Alarm: Sound and light
• Buzzer mute: Supported (default 10-minute auto recovery)
• Power supply (host): DC24V ± 6%
• Gas compatibility: Customizable for multiple gas types
