Annealing furnace FMU-03A

calcinationheat treatmentburnout

Product Overview

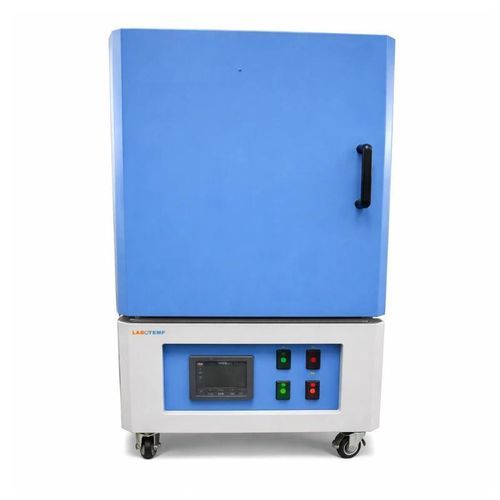

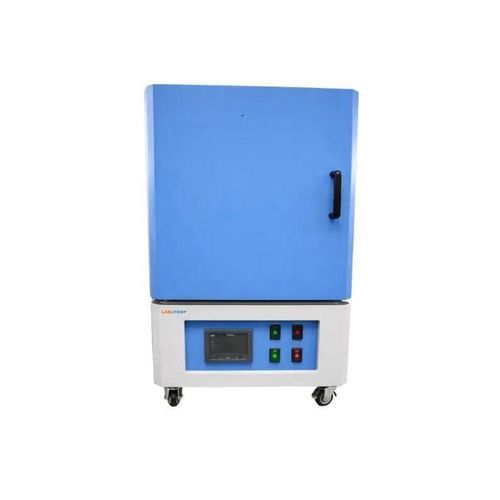

Labotemp box-type muffle furnace FMU-03A delivers precise and uniform high-temperature performance for laboratory and industrial processes. With a 16 L chamber (250 × 400 × 160 mm) and rated operating temperature up to 1000°C (maximum allowable 1100°C), the FMU-03A is engineered for tasks such as material testing, ashing, heat treatment and research. The chamber uses monolithic refractory brick and high-purity refractory materials combined with lightweight ceramic fiber insulation to ensure temperature stability and energy efficiency. The unit integrates a PID intelligent temperature controller (self-tuning), Type K thermocouple and thyristor power regulation for accurate control (±3°C) and stable heating.

Key Benefits

• Accurate PID temperature control with self-tuning for stable regulation
• Optimized insulation to reduce heat loss and lower energy consumption
• Durable chamber design with corrosion and oxidation resistance for continuous use
• Integrated safety: over-temperature protection plus voltage and current monitoring
• Uniform three-side heating and fast heating rate for reproducible results

Features

• Box-type compact structure with efficient space utilization
• PID intelligent temperature control with high precision (self-tuning)
• Uniform heating from three sides for consistent thermal distribution
• Ceramic fiber and high-purity polycrystalline fiber insulation
• Double-layer insulated body with air gap for thermal safety
• Fast heating rate and stable high-temperature performance
• Integrated electronic control system with real-time voltage and current monitoring
• Thyristor-controlled power regulation for stable output
• Side-opening door for easy sample handling
• Over-temperature protection and safety interlocks

Applications

• Heat treatment, annealing and sintering of metals, ceramics and composites
• Ash content analysis and thermal testing in QC laboratories
• Calcination and residue analysis in pharmaceutical and chemical labs
• University and research labs for high-temperature experiments
• Industrial R&D and process validation
• Mining and metallurgy sample testing

Specifications
Equipment Type: Box-type muffle furnace
Maximum Operating Temperature: 1000°C
Maximum Allowable Temperature: 1100°C
Internal Chamber Volume: 16 liters
Internal Chamber Size (D×W×H): 250 × 400 × 160 mm
External Dimensions (L×W×H): 750 × 600 × 800 mm
Weight: 130–150 kg (net weight 145 kg; gross weight 180 kg)
Chamber Material: Monolithic refractory brick
Outer Casing: Electro-galvanized steel with epoxy coating
Heating Element: Electric resistance wire
Heating Power: 5 kW
Heating Rate: 0–30°C/min
Temperature Control Accuracy: ±3°C
Thermocouple Type: Type K
Time to Max Temperature: 30–50 minutes
Voltage / Frequency / Phase: 110 V / 60 Hz / Single phase
Control System: Integrated electronic control with electronic display
Monitoring: Voltage & current (amperage) sensors; over-temperature protection

Technical specifications

• Model: FMU-03A
• Type: Box-type muffle furnace
• Maximum operating temperature: 1000°C (max allowable 1100°C)
• Chamber volume: 16 L
• Internal chamber size: 250 × 400 × 160 mm
• External dimensions: 750 × 600 × 800 mm
• Net weight: 145 kg; Gross weight: 180 kg
• Chamber material: Monolithic refractory brick
• Outer casing: Electro-galvanized steel with epoxy coating
• Heating power: 5 kW; Heating element: Electric resistance wire
• Heating rate: 0–30°C/min; Time to max temperature: 30–50 minutes
• Temperature control accuracy: ±3°C; Thermocouple: Type K
• Voltage/frequency/phase: 110 V / 60 Hz / Single phase
• Control & display: Integrated electronic control system with electronic temperature display
• Monitoring & safety: Voltage and current monitoring, over-temperature protection, thyristor-controlled regulation
• Structure & usability: Side-opening door, double-layer insulation, compact design
