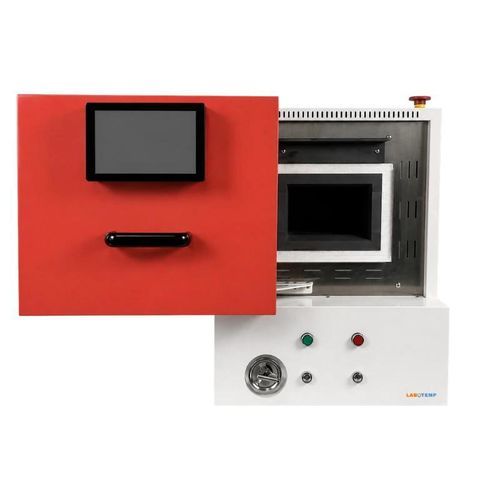

Calcination furnace Muffle Furnace-03B

thermalanalysissintering

Product overview
Labotemp Muffle Furnace-03B is a compact laboratory muffle furnace designed for controlled high-temperature processes up to 1000°C. With a 7 L silicon carbide-lined chamber and nickel-chromium heating elements, it delivers consistent thermal distribution for tasks such as material testing, ash analysis, sintering and small-batch heat treatments. The unit integrates a PID control system with 1°C resolution and ±5°C accuracy for repeatable cycles.

Design & safety
The furnace is engineered for safe operation and longevity. The cooled outer shell reduces surface temperature during runs. Built-in protections include automatic power cut and alarm on fault, overcurrent/leakage protection switch, and an external emergency stop. Optional upgrades include touchscreen control, programmable sequences and remote monitoring with real-time data logging.

Key selling points

• Safety-focused design: cool exterior and auto shutdown on fault
• Precise temperature control: PID regulation up to 1000°C with 1°C resolution
• Flexible operation: touchscreen interface, programmable runs and optional remote monitoring

Features

• Auto safety shutdown and alarm
• High-density silicon carbide chamber for improved thermal retention and reduced heat loss
• Fast heat-up with optimized thermal circulation to shorten cycle times
• Wide programmable timing range (0–999 hrs) for extended unattended cycles
• Type K thermocouple for reliable high-temperature sensing
• Multi-unit control capability for centralized operation of several furnaces
• Corrosion-resistant coated steel exterior for durable lab/industrial use
• Stable structural design to minimize vibration impact on sensitive treatments

Applications

• Controlled high-temperature processing: material calcination, ash content determination, ceramic and powder sintering, thermal decomposition studies
• Suitable for R&D laboratories, metallurgy, pharmaceuticals and quality control where precise programmable heating cycles and repeatable temperature accuracy are required for small-volume samples

Technical specifications

• Capacity: 7 L
• Temperature control range: 300–1000°C
• Power supply: AC 220V 50Hz
• Temperature control accuracy: ±5°C
• Temperature resolution: 1°C
• Temperature rising time: 60 ±5 minutes
• Power: 5.3 kW
• Exterior material: Cold-rolled steel sheet with anti-corrosion coating
• Furnace material: Silicon carbide
• Furnace chamber dimensions (W×D×H): 200 × 300 × 120 mm
• Heater material: Nickel-chromium alloy wire
• Temperature controller: Touch screen
• Temperature control mode: PID
• Timing: 0–999 hours
• Run function: Constant value operation, program operation
• Sensor: Type K
• Safety device: Overcurrent/leakage protection switch
• Overall dimensions (W×D×H): 560 × 750 × 670 mm
• Package size: 870 × 690 × 910 mm
• Net weight: 110 kg
• Gross weight: 135 kg
