Muffle furnace FMU-08

annealingheat treatmentsintering

Overview

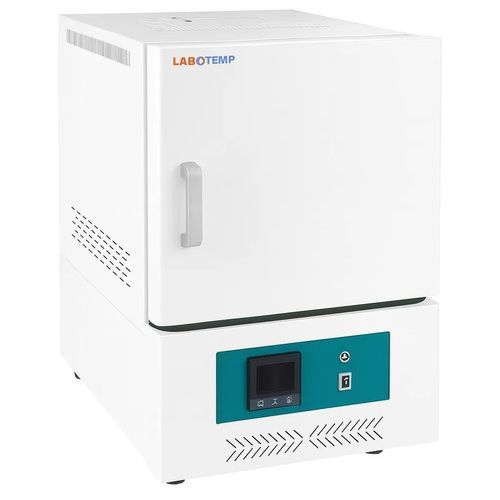

Labotemp Muffle Furnace FMU-08 is an ISO & CE-certified high-temperature electric muffle furnace engineered for demanding laboratory and industrial use up to 1600°C (1500°C continuous). The 12 L lab muffle furnace combines a polycrystalline mullite fiber chamber, alumina-fiber insulation and a cold-rolled steel shell with a MoSi₂ rod heating system for rapid heat-up (<40 min) and excellent temperature uniformity. An advanced 7" touchscreen programmable PID controller with S-type sensor delivers 1°C resolution and ±1°C accuracy for repeatable thermal processes.

Highlights

• High maximum temperature: 1600°C (1500°C continuous)
• 12 L chamber volume with polycrystalline mullite fiber chamber
• MoSi₂ rod heater for rapid & uniform heating (<40 min rise time)
• Alumina fiber insulation and cold-rolled steel outer shell for durability and efficiency
• 7" touchscreen programmable PID controller, real-time curve display, 0–9999 min timer
• Temperature resolution 1°C and accuracy ±1°C
• Multiple safety devices: overtemperature protection, leakage protection, door-opening protection

Features

• LED Display
• High-temperature operation suitable for demanding thermal processes
• Powerful 10 kW MoSi₂ heating system
• Polycrystalline mullite chamber and alumina fiber insulation for low heat loss and long service life
• 7-inch touchscreen PL controller with PID, curve display and programmable timing
• Safety features including over-temperature protection, leakage protection and door-opening heating cut-off

Applications

• Ceramic sintering
• Material testing and advanced material development
• Crystal growth
• Metal annealing, ashing and heat treatment
• Universities, research laboratories, metallurgy and industrial R&D environments

Caractéristiques / spécifications techniques

• Model NO.: FMU-08
• Volume: 12L
• Temperature Range: 1600℃ (1500℃ continuous)
• Temperature Resolution: 1℃
• Temperature Accuracy: ±1℃
• Current Rating: AC 380V
• Power Rating: 10kW
• Rise Time: <40 min
• Chamber Material: Polycrystalline Mullite fiber
• Outer Shell: Cold-rolled steel
• Insulation Layer: Alumina fiber
• Heater: MoSi₂ Rod
• Exhaust Hole: ODφ22 IDφ18
• Controller: 7” Touchscreen PL
• Temperature Setting Mode: Touch
• Temperature Display Mode: Touch/LED
• Timer: 0–9999 min
• Operation Function: Constant temp or program
• Additional Function: Start/stop button; sensor alarm; overshoot setting; correction
• Sensor: S-type
• Safety Device: Overtemperature; leakage; door-opening protection
• Chamber Size (mm): 300×200×200
• Exterior Size (mm): 750×865×1150
• Packing Size (mm): 910×1045×1360
• NW/GW (kg): 150/170
• Optional Type: Air inlet
