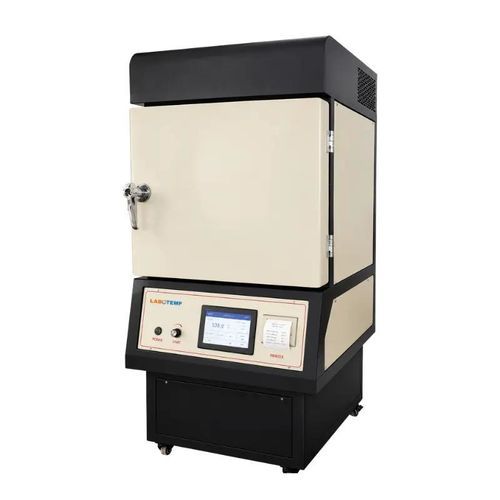

Analysis furnace LBC-102

burnoutheatingfor general applications

Product overview
The LBC-102 asphalt ignition furnace is a solvent‑free ignition testing system for rapid determination of asphalt binder content in hot mix asphalt (HMA) samples. Designed for asphalt plants, road laboratories and QC departments, it supports AASHTO T308 and ASTM D6307 methods and handles routine and large‑capacity samples.

High-capacity asphalt testing

• Accepts standard sample sizes 1,200–1,800 g and supports up to 5,000 g for high‑capacity testing and production control.

Precision weight monitoring

• Built‑in high‑precision electronic balance continuously monitors sample mass during the ignition cycle and automatically calculates binder content with ±0.11% test accuracy.

Advanced temperature control

• Combustion chamber operating range 200°C–650°C with default test temperature 538°C; programmable automatic temperature control ensures repeatable results.

Emission reduction & safety

• Integrated afterburner (650°C–750°C) with ceramic filtration reduces exhaust emissions (up to 95%).
• Automatic door‑locking system and selectable automatic/manual modes enhance operator safety and testing flexibility.

Smart data management

• Real‑time data monitoring, automatic endpoint detection, temperature compensation and RS‑232 connectivity for PC integration and graphical analysis.

Key benefits

• Up to 5,000 g sample capacity for routine and high‑volume testing
• Solvent‑free method that eliminates chemical extraction and hazardous waste handling
• Continuous automatic weight monitoring with programmable endpoint sensitivity

Features

• Test accuracy: ±0.11%
• Compliance: AASHTO T308, ASTM D6307, EN 12697-39, JTG E20 T0735
• Balance capacity: 10.0 kg; accuracy 0.1 g
• Endpoint sensitivity programmable 0.01%–0.5%
• Operates 200°C–650°C; afterburner 650°C–750°C
• RS‑232 interface for data transfer and PC analysis
• Automatic printing of results

Applications

• Asphalt mix design verification
  Determination of binder content to validate mix designs and ensure compliance with specifications.
• Production quality control
  On‑site monitoring of binder content at asphalt plants for process control.
• Highway & infrastructure testing
  Acceptance testing and contract compliance for road construction agencies.
• Materials testing laboratories
  Routine QA, research and forensic pavement investigations.
• Research & development
  Civil engineering and transport research on binder‑aggregate relationships.

Standard accessories

• Electronic balance
• Stainless steel bottom plate
• Sample basket set (2 baskets, tray, tray cover)
• Handling handle and safety cage
• Heat‑resistant gloves and 4 rolls printer paper
• Flexible galvanized exhaust pipe and 6 spare fuses

Optional accessories

• Additional sample basket set
• Aluminum cooling board and cooling safety cage

Technical specifications

• Operating temperature: 200°C – 650°C
• Default test temperature: 538°C
• Power supply: 220–240 V, 60 Hz, 20/27 A
• Afterburner: 650°C – 750°C
• Balance capacity: 10.0 kg; accuracy: 0.1 g
• Sample mass: standard 1,200–1,800 g; maximum 5,000 g
• Test accuracy: ±0.11%
• Endpoint sensitivity: 0.01%–0.5% (adjustable)
• Chamber dimensions (W × D × H): 356 × 356 × 356 mm
• External dimensions (W × D × H): 553 × 677 × 1029 mm
• Net weight: 110 kg; Gross weight: 160 kg
