Annealing furnace FMU-13

analysisheat treatmentsintering

Product overview

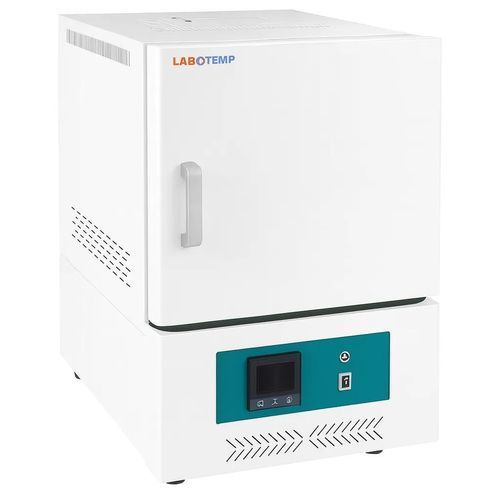

The Labotemp Muffle Furnace FMU-13 is a high-temperature laboratory and industrial muffle furnace with a 20 L chamber, designed for thermal processing up to 1700℃ (1500℃ continuous). It combines an HHR polycrystalline mullite-fiber chamber, high-temperature alumina insulation and a 12 kW HHR MoSi₂ rod heating system for rapid heat-up (<40 min), stable operation and good temperature uniformity. FMU-13 is intended for ceramic sintering, high-temperature metallurgy, crystal growth, annealing, thermal analysis and material testing in universities, R&D centres and industrial laboratories, and incorporates programmable control and multiple safety protections.

Key benefits

• Rapid and uniform heating with 12 kW HHR MoSi₂ rod system; heat-up <40 min.
• 20 L chamber increases part throughput for lab-scale batches.
• High-efficiency thermal insulation with mullite chamber and alumina fiber to reduce heat loss.
• Programmable PID control and multi-stage cycles for repeatable profiles plus built-in safety protections.

Features

• HHR polycrystalline mullite-fiber chamber for low heat loss and durability.
• High-temperature capability to 1700℃ (1500℃ continuous), resolution 1℃, accuracy ±1℃.
• 12 kW HHR MoSi₂ rod heater delivering fast, stable heating.
• High-temperature alumina fiber insulation for improved efficiency.
• 7" touchscreen PL controller with PID, programmable cycles (0–9999 min) and real-time temperature curve display.
• Comprehensive safety: over-temperature protection, leakage protection, door-opening heating cut-off, sensor alarm and overshoot setting.
• Optional communication: RS-485 and USB data storage.

Applications

• Ceramic sintering and advanced ceramic processing.
• High-temperature metallurgy and annealing operations.
• Crystal growth, precision materials research and thermal analysis.
• University labs, R&D centres and industrial laboratories requiring controlled, repeatable high-temperature profiles.

Specifications (table view)
Model NO.: FMU-13
Volume: 20 L
Temperature Range: 1700℃ (1500℃ continuous)
Temperature Resolution: 1℃
Temperature Accuracy: ±1℃
Current Rating: AC 380V
Power Rating: 12 kW
Rise Time: <40 min
Chamber Material: HHR Mullite fiber
Outer Shell: Cold-rolled steel
Insulation Layer: High-temperature alumina fiber
Heater: HHR MoSi₂ Rod
Exhaust Hole: Diφ22 Deφ18
Controller: 7" Touchscreen PL
Temperature Setting Mode: Touch
Temperature Display Mode: Touch/LED
Timer: 0–9999 min
Operation Function: Constant temp or program
Additional Function: Start/stop button; sensor alarm; overshoot setting; correction
Sensor: B-type
Safety Device: Overtemperature; leakage; door-opening protection
Chamber Size (mm): 300×260×260
Exterior Size (mm): 750×925×1210
Packing Size (mm): 910×1105×1420
NW/GW (kg): 175/195
Optional Type: 485 Communication; USB storage

Technical specifications

• Model: FMU-13
• Chamber volume: 20 L
• Max temperature: 1700℃ (1500℃ continuous)
• Temperature resolution: 1℃
• Temperature accuracy: ±1℃
• Heating: 12 kW HHR MoSi₂ rod system
• Chamber material: HHR mullite fiber
• Insulation: High-temperature alumina fiber
• Controller: 7" touchscreen PL, PID control, programmable 0–9999 min
• Power / Voltage: AC 380V, 12 kW
• Chamber dimensions (mm): 300 × 260 × 260
• Exterior dimensions (mm): 750 × 925 × 1210
• Net/Gross weight (kg): 175 / 195
• Safety: Overtemperature, leakage protection, door-opening cut-off
• Options: RS-485 communication; USB data storage
