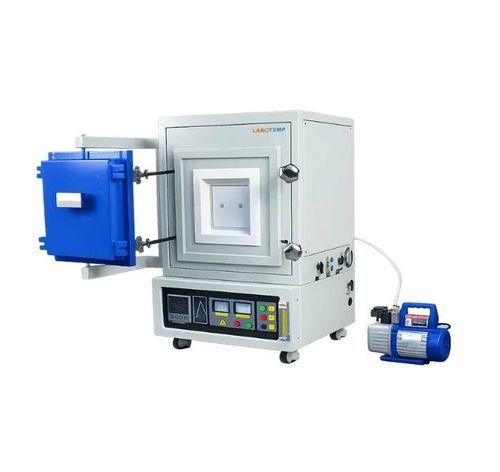

Annealing furnace FMU-17

calcinationthermalanalysis

Overview
Labotemp Controlled Atmosphere Furnace FMU-17 is a mid-sized laboratory muffle furnace rated to 1200 °C. It combines three-sided resistance heating with PID temperature control to provide stable ramps and ±1 °C accuracy. The vacuum-sealed chamber with inert gas ports supports nitrogen, argon, oxygen and other non-reactive gases for controlled-atmosphere processes. Multi-layer high-purity ceramic fiber insulation and a robust steel shell reduce heat loss for frequent laboratory cycles.

Applications

• Material research and small-batch production
• Ceramic and powder sintering
• Calcination
• Annealing and stress-relief operations
• Carbon material treatment
• Lithium battery material processing
• Ashing and thermal analysis of samples
• Controlled atmosphere material testing and high-temperature R&D processing

Key benefits / Why choose FMU-17?

• Controlled atmosphere performance: Vacuum-sealed chamber with inert gas ports enables reliable purging and atmosphere management for sensitive processes
• Energy efficient design: Multi-layer ceramic fiber lining and sturdy steel shell minimise thermal loss and lower operating costs
• Advanced process control: PID regulation with ±1 °C accuracy and programmable multi-segment profiles for repeatable results

Features

• Over-temperature warning and system fault alerts
• Uniform multi-side heating for stable chamber temperature distribution
• Programmable PID temperature control with automatic heating and cooling segments
• High-efficiency ceramic fiber insulation
• Compatible with various controlled gas atmospheres
• Adjustable heating rate for precise process control (0–20 °C/min; recommended ≤10 °C/min)
• Built-in safety protections including temperature deviation and phase-loss warnings
• Durable sealed door design ensuring reliable thermal performance

Standard accessories

• 1 pair of crucible tongs
• 1 pair of heat-resistant gloves

Specifications

• Maximum Temperature: 1200 °C
• Common operating temperature: < 1100 °C
• Voltage: AC 220 V, 50 Hz
• Power: 6 kW
• Heating Element: Resistor wire
• Thermocouple: Type K
• Display mode: Digital display
• Temperature control accuracy: ±1 °C
• Heating Method: Three-sided heating (left, right and top)
• Heating Rate: 0–20 °C/min (recommend ≤10 °C/min for best results)
• Furnace structure: Integrated compact design with step-like joint to distribute mechanical force and reduce heat loss
• Furnace material: High-alumina multi-layer ceramic fibers for insulation and rapid temperature change resistance
• Safety protection: Temperature deviation protection, over-temperature warning, phase-loss warning, and over-flow protection
• Gas compatibility: Oxygen, carbon monoxide, nitrogen, argon and other inert gases
• Furnace door sealing: Plane-ground door with embedded silicone sealing strips for strong seal and easy operation
• Maximum vacuum degree (cold): −0.1 MPa (not guaranteed at hot state)
• Internal Dimension (mm): 300 × 200 × 200
• Package Size (mm): 890 × 800 × 1375
• Gross Weight: 240 kg
• Net Weight: 127 kg
