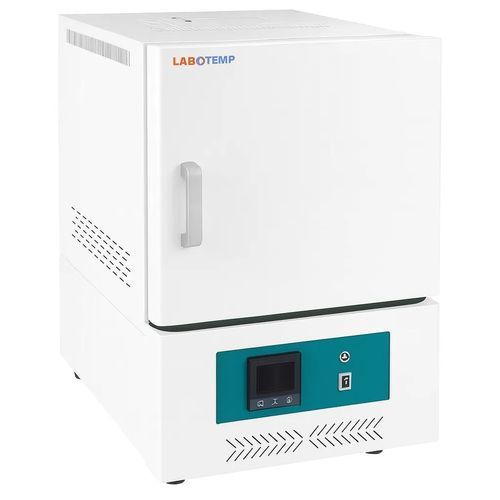

Annealing furnace FMU-14

analysissinteringlaboratory

Overview
Labotemp FMU-14 is an ISO & CE‑certified electric muffle furnace designed for precision laboratory and industrial high‑temperature processing up to 1700℃. The 36 L working chamber features HHR polycrystalline mullite‑fiber lining and high‑temperature alumina insulation inside a cold‑rolled steel outer shell to ensure thermal stability, low heat loss and long service life.

Key selling points

• Certified quality: ISO & CE compliant.
• Large 36 L chamber for high‑volume sintering and heat treatment.
• High power 15 kW HHR MoSi₂ heating for fast, uniform heating.
• Precise digital control: 7" touchscreen PID with programmable cycles and real‑time display.

Features

• Rated to 1700℃ for advanced ceramic, metallurgical and thermal processes.
• 36 L chamber constructed with HHR mullite fiber and high‑temperature alumina insulation for energy efficiency and durability.
• 15 kW HHR MoSi₂ heater delivers rapid heat‑up (<40 min to max temperature) and stable operation under continuous load.
• 7" touchscreen PL PID controller with programmable cycles (0–9999 min), real‑time temperature display and touch/LED modes.
• Comprehensive safety: over‑temperature alarm, leakage protection and heating cut‑off on door opening.

Applications

• Large‑scale ceramic sintering and crystal growth.
• Metallurgy and advanced materials research requiring stable operation to 1700℃.
• Annealing, thermal cycling, ashing and precise programmed heating in R&D and production QC laboratories.

Technical specifications

• Model NO.: FMU-14
• Volume: 36 L
• Maximum temperature: 1700℃
• Temperature resolution: 1℃
• Temperature accuracy: ±1℃
• Power rating: 15 kW
• Supply: AC 380V
• Heater: HHR MoSi₂ rods
• Chamber material: HHR polycrystalline mullite fiber
• Insulation: high‑temperature alumina fiber
• Outer shell: cold‑rolled steel
• Exhaust hole: Diφ22 Deφ18
• Controller: 7" touchscreen PL (PID), programmable; timer 0–9999 min
• Temperature setting/display mode: touch / LED
• Operation modes: constant temperature or program
• Additional functions: start/stop, sensor alarm, overshoot setting, correction
• Sensor: Type B thermocouple
• Safety devices: over‑temperature alarm, leakage protection, door‑open heating cut‑off
• Chamber size (mm): 300 × 400 × 300
• Exterior size (mm): 750 × 1065 × 1250
• Packing size (mm): 910 × 1265 × 1460
• NW/GW (kg): 270 / 320
• Optional: RS‑485 communication; USB storage
