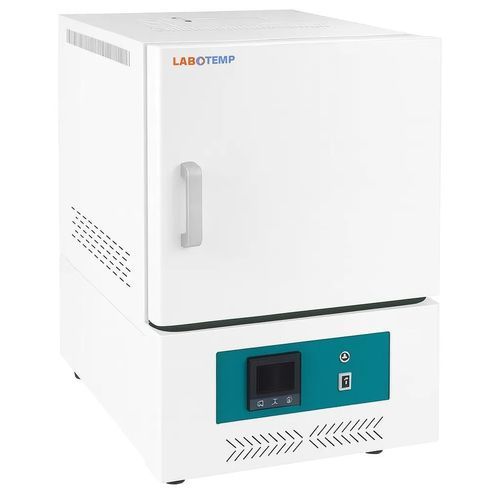

Annealing furnace FMU-10

sinteringfor scientific researchfor general applications

Product overview
Labotemp Muffle Furnace FMU-10 is an ISO- and CE-certified electric muffle furnace for high-temperature laboratory and industrial processes up to 1600°C (1500°C continuous). The 36 L polycrystalline mullite fiber chamber, alumina-fiber insulation and cold-rolled steel outer shell reduce heat loss and extend service life. A 15 kW MoSi₂ rod heating system enables fast ramp-up (<40 min) and good temperature uniformity. Control is via a 7" touchscreen programmable PID controller with S-type sensor (1°C resolution, ±1°C accuracy), programmable cycles and real-time curve display suitable for repeatable processes.

Why choose Muffle Furnace FMU-10?

• Large capacity and power: 36 L chamber with 15 kW heating for higher throughput.
• Precise digital control: 7" touchscreen PID controller with S-type sensor (±1°C accuracy, 1°C resolution).
• Fast, uniform heating: MoSi₂ heating rods enable <40 min ramp-up and low thermal gradients.
• Efficient, durable construction: polycrystalline mullite fiber chamber, alumina insulation and cold-rolled steel shell.

Features

• 36 L chamber capacity.
• Temperature up to 1600°C (1500°C continuous).
• 15 kW MoSi₂ rod heating for fast heat-up and good uniformity (<40 min).
• Polycrystalline mullite fiber chamber and alumina-fiber insulation for thermal stability and reduced energy loss.
• 7" touchscreen programmable PL controller with PID, programmable timing (0–9999 min) and curve viewing.
• Safety protections: over-temperature alarm, leakage protection and heating cut-off on door opening.

Applications

• Ceramic sintering and large-scale thermal processing.
• Materials processing, metal annealing and crystal growth.
• Thermal analysis, ashing and heat-treatment cycles.
• Universities, research institutes, industrial R&D and QC laboratories requiring high-temperature processing.

Technical specifications

• Model NO.: FMU-10
• Volume: 36 L
• Temperature range: 1600℃ (1500℃ continuous)
• Temperature resolution: 1℃
• Temperature accuracy: ±1℃
• Current rating: AC 380V
• Power rating: 15 kW
• Rise time: <40 min
• Chamber material: Polycrystalline mullite fiber
• Outer shell: Cold-rolled steel
• Insulation layer: Alumina fiber
• Heater: MoSi₂ rod
• Exhaust hole: ODφ22 IDφ18
• Controller: 7" Touchscreen PL (programmable PID)
• Temperature setting mode: Touch
• Temperature display mode: Touch/LED
• Timer: 0–9999 min
• Operation function: Constant temp or program
• Additional function: Start/stop button; sensor alarm; overshoot setting; correction
• Sensor: S-type
• Safety device: Overtemperature; leakage; door-opening protection
• Chamber size (mm): 300×400×300
• Exterior size (mm): 750×1065×1250
• Packing size (mm): 910×1265×1460
• NW/GW (kg): 270/320
• Optional type: Air inlet
