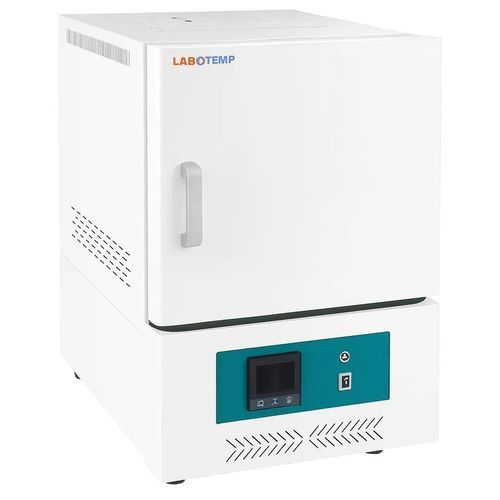

Annealing furnace FMU-07

meltinganalysissintering

Overview
Labotemp Muffle Furnace FMU-07 is an ISO & CE-certified high-temperature benchtop electric muffle furnace designed for laboratory and research use up to 1600℃ (1500℃ continuous). It features a polycrystalline mullite fiber chamber, high-temperature alumina fiber insulation and a cold-rolled steel outer shell to minimize heat loss and extend service life. MoSi2 rod heating ensures rapid rise time (<40 min) and uniform temperature distribution, making FMU-07 suitable for ceramic sintering, crystal growth, metal annealing and advanced material development.

Control & Safety
The furnace is equipped with a 7-inch touchscreen programmable PID controller with S-type sensor, 1℃ resolution and ±1℃ accuracy, supporting multi-segment programming, timer (0–9999 min) and additional functions such as start/stop, sensor alarm, overshoot setting and temperature correction. Enhanced safety features include over-temperature protection, leakage protection and door-opening heating cut-off.

Why choose Muffle Furnace FMU-07?

• Certified Performance: ISO & CE compliance for laboratory standards.
• Precise Control: 7-inch touchscreen PID controller with S-type sensor (±1℃, 1℃ resolution) and 30-segment programming.
• Rapid Heating: MoSi2 rod system with rise time <40 minutes.

Features

• 1600℃ maximum temperature (1500℃ continuous working temperature).
• MoSi2 heating rods and polycrystalline mullite fiber chamber for fast heating and thermal stability.
• 7-inch touchscreen programmable controller with 30-segment programming and real-time temperature display.
• Cold-rolled steel exterior and high-temperature alumina fiber insulation for reduced heat loss and strong structural durability.
• Safety devices including over-temperature protection, leakage protection and door-opening heating cut-off.

Applications

• Laboratory high-temperature processing and material development.
• Ceramics sintering, crystal growth, metal annealing and melting tests.
• Thermal analysis, ashing and heat treatment experiments in universities, research institutes and industrial labs.

Specifications (table)
Model NO. : FMU-07
Volume : 4L
Temperature Range : 1600℃ (1500℃ continuous)
Temperature Resolution : 1℃
Temperature Accuracy : ±1℃
Current Rating : AC 220V
Power Rating : 5.5 kW
Heater : MoSi₂ Rod
Rise Time : <40 min
Chamber Material : Polycrystalline Mullite fiber
Outer Shell : Cold-rolled steel
Insulation Layer : High-temp alumina fiber
Exhaust Hole : ODφ22 IDφ18
Controller : 7-inch Touchscreen PL
Temperature Setting Mode : Touch
Temperature Display Mode : Touch/LED
Timer : 0–9999 min
Operation Function : Constant temp or 30-segment program
Additional Function : Start/stop button; sensor alarm; overshoot setting; temp correction
Sensor : S-type
Safety Device : Overtemp; leakage; door-opening protection
Chamber Size (mm) : 150×150×150
Exterior Size (mm) : 600×815×1100
Packing Size (mm) : 760×985×1310
NW/GW (kg) : 80/100
Optional Type : Air inlet

Technical specifications

• Model NO.: FMU-07
• Volume: 4L
• Temperature Range: 1600℃ (1500℃ continuous)
• Temperature Resolution: 1℃
• Temperature Accuracy: ±1℃
• Current Rating: AC 220V
• Power Rating: 5.5 kW
• Heater: MoSi₂ Rod
• Rise Time: <40 min
• Chamber Material: Polycrystalline Mullite fiber
• Outer Shell: Cold-rolled steel
• Insulation Layer: High-temp alumina fiber
• Exhaust Hole: ODφ22 IDφ18
• Controller: 7-inch Touchscreen PL
• Temperature Setting Mode: Touch
• Temperature Display Mode: Touch/LED
• Timer: 0–9999 min
• Operation Function: Constant temp or 30-segment program
• Additional Function: Start/stop button; sensor alarm; overshoot setting; temp correction
• Sensor: S-type
• Safety Device: Overtemp; leakage; door-opening protection
• Chamber Size (mm): 150×150×150
• Exterior Size (mm): 600×815×1100
• Packing Size (mm): 760×985×1310
• NW/GW (kg): 80/100
• Optional Type: Air inlet
