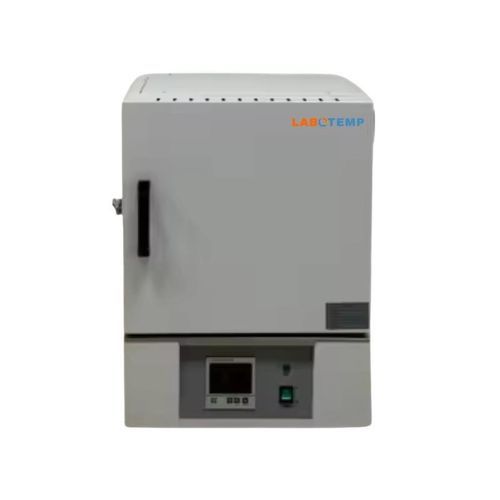

Muffle furnace FMU-06

calcinationthermalanalysis

Product overview
Labotemp Muffle Furnace FMU-06 is an ISO & CE certified electric laboratory muffle furnace designed for high-capacity heating up to 1200°C. The 16 L chamber is insulated with aluminum-silicate and uses four-sided heating to ensure uniform temperature distribution. A digital double-row PID controller with K-type thermocouple provides 1°C resolution and ±5% stability. Touch-key temperature setting and an automatic constant-temperature mode simplify operation for routine laboratory and QC workflows.

Intended use
FMU-06 is intended for research institutes, materials testing laboratories and industrial quality control for processes such as ashing, calcination, sintering, heat treatment, thermal analysis and sample preparation. It is engineered for continuous laboratory use with low maintenance requirements.

Why choose the Muffle Furnace FMU-06?

• Certified for lab use: ISO & CE compliant
• Precise digital control: double-row PID with K-type sensor (±5%, 1°C resolution)
• Large-capacity chamber: 16 L for batch or high-volume samples
• Uniform heating: four-sided heating for reproducible results

Features

• Accurate temperature monitoring
• Maximum temperature 1200°C with PID digital control
• Touch-key setting for intuitive operation
• Fast heating: room temp → 1200°C in ~80 min
• Four-sided heating for temperature uniformity
• High-insulation aluminum-silicate furnace body
• Nickel-chromium alloy heater for long service life
• Automatic constant-temperature mode
• 16 L chamber capacity, 10 kW power, AC380V supply

Applications

• Ashing, calcination, sintering, heat treatment, thermal analysis and sample preparation in laboratories, research institutes and materials testing facilities

Spare parts

• Control panel
• Heating element
• Sensor (K-type)

Technical specifications

• Maximum temperature: 1200°C
• Chamber volume: 16 L
• Rated power: 10 kW
• Time RT → max (min): 80
• Heating mode: automatic constant temperature
• Heating type: four-sided heating
• Exhaust port: Ø30 mm × 1
• Exhaust chimney: stainless steel
• Furnace body material: aluminum silicate
• Heater material: nickel-chromium-aluminum alloy wire (OCr27A17Mo2)
• Temperature fluctuation: ±5%
• Temperature control mode: digital double-row PID
• Temperature setting mode: touch four keys
• Sensor type: K-type thermocouple
• Power supply / rated current: AC380V / 12A
• Internal dimensions (mm): 400×250×160
• External dimensions (mm): 750×580×800
• Temperature resolution: 1°C
• Packing dimensions (mm): 870×630×790
• Net weight: 140 kg
• Gross weight: 160 kg
• Maximum continuous operating temperature: 1100°C
