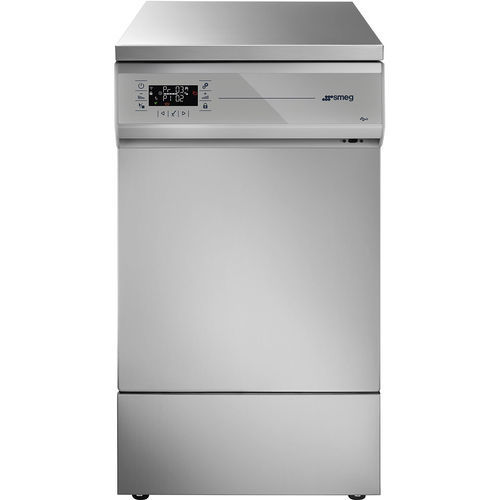

Automatic glassware washer GW1245-S0-100

laboratoryfor the food industrywater

Overview Designed in Italy by Smeg Instruments, this glassware washer is developed for life science and small laboratory/agro-food applications, combining laboratory-grade materials with user-oriented controls.

Target

• Instruments Solutions: Life science
• Life Science sector: Agro-food; Small Laboratories

Type

• Glassware washer 45 cm
• Undercounter installation: Yes

Technical Features

• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1, stainless-steel drop-down door
• Washer chamber material: AISI 316L

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical Connection

• Electrical connection: 1N AC 230V - 50Hz
• 60 Hz possibility: Yes, on demand
• Plug: (F;E) Schuko

Hydraulic Connection

• Cold water connection: Yes
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Interface

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN / Yes via USB pen drive

Construction

• External material of the machine: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes

Equipments

• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Probe passage hole for validation: Optional

Logistic Information

• Product dimensions WxDxH (mm): 450x620x850

Optional Accessories (examples shown)

• LM24 — Washing functions: Narrow-necked glassware, Nozzle number: 24
• LM46 — Washing functions: Narrow-necked glassware, Nozzle number: 24
• D-CS1 — Washing functions: Holding of supports and baskets, Washing levels: 1
• D-CS2 — Washing functions: Holding of supports and baskets, Washing levels: 1

Specifications

• Model family: GW1245 series
• Type: Glassware washer 45 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1 stainless-steel drop-down door
• External material: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes
• Undercounter installation: Yes
• Dimensions (WxDxH mm): 450x620x850
• Electrical: 1N AC 230V - 50Hz (60 Hz on demand), Plug: (F;E) Schuko
• Cold water connection: Yes; Demineralized water connection: Yes; Drain pump: Yes; Booster pump: Optional
• Peristaltic pumps: dosing for neutraliser and detergent included; up to 1 additional pump possible
• Water softener: Yes; Detergent level sensor: Optional; Probe passage hole for validation: Optional
• Programs: 20 standard stored, 20 modifiable, program editing enabled
• Interface: Electronic control; alarm indicator on display; remaining duration and end-of-cycle indicators; traceability of last 300 executed programs; cycle archive; cycle download via LAN optional or USB pen drive
