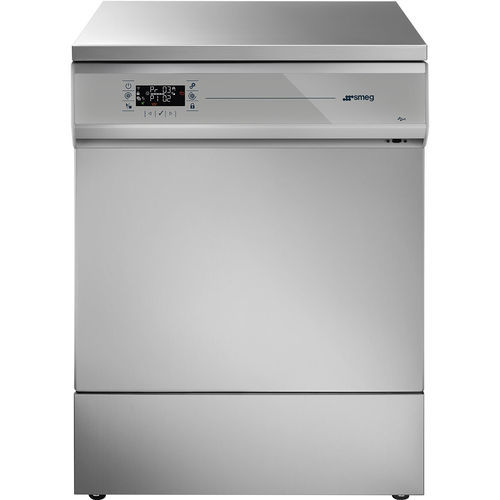

Automatic glassware washer GW4260-00-000

laboratorywater-based detergentwater

Overview
Smeg-designed glassware washer for laboratory and life-science applications combining functional characteristics and advanced interface for intuitive daily operation. Equipped with dedicated programs, data recording capabilities and options for chemical dosing and validation.

Highlights

• Color touch display: touch on glass LCD color display enables simple and intuitive operation; compact interface provides full information and specific programs for every need; ECO program available to reduce water and energy consumption.
• Data recording: USB input for laboratory data recording and immediate connection to PC via software for diagnostics, cycle customization and data analysis.
• Complete drying: accurate complete drying with automatic door opening for maximum performance and speed.

Main characteristics

• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying system: Yes
• Undercounter installation: Yes
• Product dimensions (WxDxH mm): 600x600x850

Technical features

• Washing levels: till 2
• HEPA filter: Optional
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC-1)
• Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi (demineralized) water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Programs and traceability

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN; Yes with USB pen drive

Equipments & options

• Powder detergent entrance: Yes
• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Also available

• Available versions: GW4260-0C-00 - version with integrated steam condenser; GW4260-00-000 - version with second dosing pump for liquid detergent

Technical specifications

• Model / Series: GW4260 series
• Product type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying: Yes
• Washing levels: up to 2
• HEPA filter: Optional
• Undercounter installation: Yes
• Dimensions (WxDxH mm): 600 x 600 x 850
• Electrical connection: 3N AC 400V - 50Hz (monophase/tri-phase conversion kits available)
• Cold water: Yes; Hot water: Optional (T4260AC); Demi water: Yes
• Drain pump: Yes; Booster pump: Optional
• Standard programs stored: 20; Modifiable programs: 20; Program editing: Yes
• Traceability: last 300 executed programs; Cycle archive: Yes; Data export: USB / optional LAN
• Detergent dosing: powder entrance + liquid dosing pumps (some optional)
