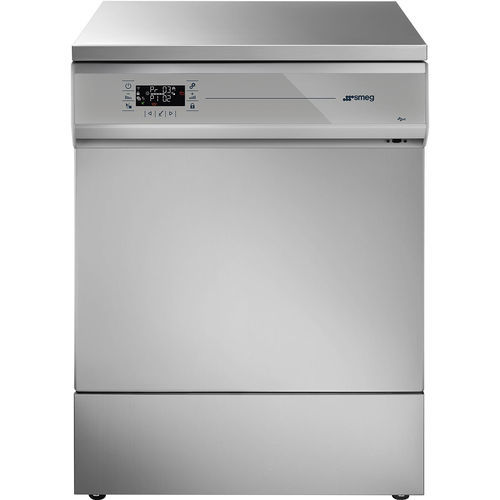

Laboratory glassware washer GW0260-00-00J

for the food industrywater-based detergentwater

Highlights
The colour touch display provides intuitive daily operation with clear access to dedicated programs. ECO mode reduces water and energy consumption compared with standard cycles.

Data recording
USB input enables laboratory data recording and PC connection for diagnostics, cycle customization and analysis. Cycle archive and download available via USB drive.

Target

• Instruments solutions: Life science
• Applicable sectors: Agro-food; Small laboratories

Type
Glassware washer 60 cm with optional undercounter installation.

Technical Features

• Working temperature: Up to 85 °C
• Washing levels: Up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 304

Programs
Standard programs stored: 7

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using optional kit WD-EC-1
• Convertible to tri-phase without neutral: Yes, using optional kit WD-EC-3
• 60 Hz: Available on request
• Plug: Not present

Hydraulic connection

• Cold water connection: Yes
• Demineralized (Demi) water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Interface

• Electronic control: Yes
• Alarm indicator: Yes, on display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Cycle archive: Yes
• Download cycle: Yes, via USB drive

Construction

• External material: AISI 304
• Washer chamber material: AISI 304
• Chamber with rails: Yes

Equipments

• Powder detergent inlet: Yes
• Peristaltic pump for liquid neutraliser dosing: Yes
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Also available
Available version: GW0260-S0-00J — version with second dosing pump for liquid detergent.

Logistic information
Product dimensions WxDxH (mm): 600x600x850

caractéristiques / spécifications techniques

• Model series: GW0260 series
• Product type: Glassware washer 60 cm
• Working temperature: Up to 85 °C
• Washing levels: Up to 2
• Stored standard programs: 7
• Door: 1 stainless-steel drop-down door
• Undercounter installation: Yes
• External material: AISI 304
• Washer chamber material: AISI 304
• Chamber with rails: Yes
• Electrical connection: 3N AC 400V - 50Hz (convertible to single- or tri-phase with optional kits)
• Hydraulic connections: Cold water Yes; Demi water Yes; Drain pump Yes; Booster pump optional
• Data recording & diagnostics: USB input for data recording and PC connection; cycle download via USB
• Dimensions (WxDxH mm): 600x600x850
