Automatic glassware washer GW4260-SC-00G

laboratorywater-based detergentwater

Overview

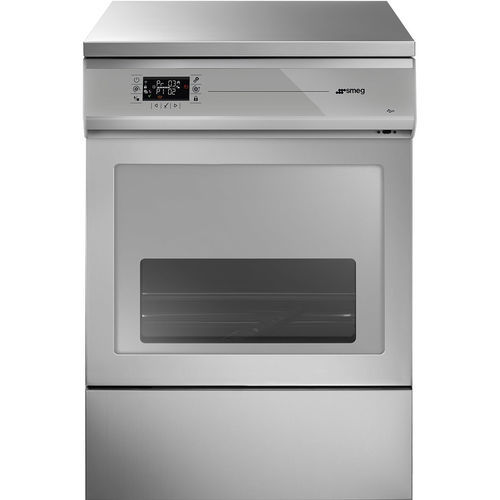

The GW4260-SC-00G by Smeg is a 60 cm glassware washer for laboratory and life-science applications. It integrates a touch-on-glass colour LCD, USB data recording and options for complete drying with automatic door opening.

Highlights

• Colour touch display for intuitive operation and ECO program to reduce water and energy use.
• USB data recording with PC connection for diagnostics, cycle customization and data export; optional LAN download.
• Forced hot-air drying with automatic door opening for fast, complete drying.

Key Features

• Type: Glassware washer 60 cm
• Working temperature: up to 95 °C
• Washer chamber: AISI 316L
• External material: AISI 304
• Door: Stainless steel with glass porthole
• Forced hot-air drying system: Yes (automatic door opening)
• Undercounter installation: Yes
• Chamber with rails: Yes
• Product dimensions (WxDxH mm): 600x600x850
• Washing levels: up to 2
• HEPA filter: Optional

Programs & Traceability

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Traceability: last 300 executed programs retained
• Cycle archive: Yes
• Cycle download: Optional via LAN; available with USB pen drive

Electrical Connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes with optional kit WD-EC-1
• Convertible to tri-phase without neutral: Yes with optional kit WD-EC-3
• 60 Hz option: Yes, on request

Hydraulic Connection

• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Equipment (standard / optional)

• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Also available

• Available version: GW4260-SC-000 - version with stainless steel door

Optional Accessories (examples)

• CS1-1: Washing functions - holding of supports and baskets
• CS2: Universal washing solution for large goods and specific supports
• M-CS1DUODS, LM80DS, LM40ICS1DS, LB8DS, LB16DS, LB4BDS, LPM2010DS, LPM2020DS, KP100DS, KP200DS (various specialised racks and nozzle configurations)

Technical specifications

• Model: GW4260-SC-00G
• Category: Glassware washer 60 cm
• Maximum working temperature: 95 °C
• Washing levels: up to 2
• Main materials: AISI 316L (chamber), AISI 304 (external)
• Drying: forced hot-air drying
• Dimensions (WxDxH mm): 600x600x850
• Electrical connection: 3N AC 400V - 50Hz (conversion kits available)
• Water connections: cold, hot optional (T4260AC), demineralized
• Data recording: USB input and optional LAN for diagnostics and cycle download
• Programs: 20 standard / 20 modifiable; traceability: last 300 programs; cycle archive: Yes
• Equipment: peristaltic dosing pumps, steam condenser, water softener; several options available
