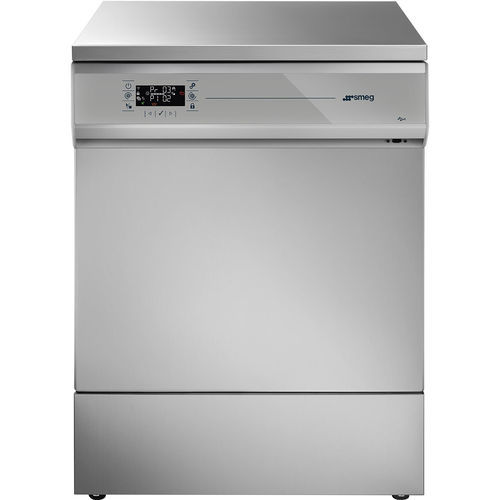

Automatic glassware washer GW4260-SC-000
laboratorydrywater

Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / dry / water
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / dry / water
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / dry / water - image - 2
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / dry / water - image - 3
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / dry / water - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Operational mode
automatic
Applications
laboratory
Technology
dry, water

Description

Overview
  • Glassware washer GW4260-SC-000: 60 cm undercounter machine with AISI 316L washing chamber, designed for laboratory and industrial glassware cleaning; working temperature up to 95 °C.


Type
  • Glassware washer, 60 cm, undercounter installation


Main characteristics
  • Working temperature: up to 95 °C
  • Washing levels: up to 2
  • Forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Door: 1 stainless-steel drop-down door
  • Washer chamber material: AISI 316L
  • External material: AISI 304
  • Dimensions (WxDxH mm): 600x600x850


Technical Features
  • Working temperature: up to 95 °C
  • Washing levels: up to 2
  • Forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Door: 1 stainless-steel drop-down door
  • Undercounter installation: Yes


Programs
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Monophase conversion: Yes, using optional kit (WD-EC-1)
  • Convertible to three-phase without neutral: Yes, using optional kit (WD-EC-3)
  • 60 Hz possibility: Yes, on demand
  • Plug: Not present


Hydraulic connection
  • Cold water connection: Yes
  • Hot water connection: Optional (T4260AC)
  • Demineralized water connection: Yes
  • Drain pump: Yes
  • Booster pump for demineralized water: Optional


Interface and Traceability
  • Electronic control: Yes
  • Alarm indicator: Yes, on display
  • Remaining duration display: Yes
  • End of cycle indicator: Yes
  • Traceability: last 300 executed programs
  • Cycle archive: Yes
  • Download cycles: Optional via LAN / Yes via USB pen drive


Construction
  • External material: AISI 304
  • Washer chamber material: AISI 316L
  • Chamber with rails: Yes


Equipments
  • Peristaltic pump for dosing liquid neutraliser: Yes
  • Peristaltic pump for dosing liquid detergent: Yes
  • Peristaltic pump for caustic soda: Optional
  • Peristaltic pump for defoamer: Optional
  • Possibility to install additional peristaltic pumps: Yes, up to 1
  • Chemicals dosing: Optional
  • Detergent level sensor: Optional
  • Steam condenser: Yes
  • Water softener: Yes
  • Acqua Stop: Optional
  • Probe passage hole for validation: Optional


Also available / Versions
  • GW4260-XX-00G — glass door version


Optional accessories (selection)
  • CS1-1 — washing functions: holding of supports and baskets
  • CS2 — universal washing solution for large items or specific supports
  • M-CS1DUODS — washing functions: holding of supports and baskets
  • LM80DS — narrow-necked glassware; nozzle number: 68
  • LM40ICS1DS — narrow- and wide-neck glassware; holding of supports and baskets; nozzle number: 40
  • LB8DS, LB16DS, LB4BDS — various bottle/flask supports
  • LPM2010DS, LPM2020DS — pipette / test tube supports
  • KP100DS, KP200DS — test tube / vial supports


Technical specifications
  • Type: Glassware washer 60 cm
  • Model: GW4260-SC-000
  • Working temperature: Up to 95 °C
  • Washing levels: up to 2
  • Door: 1 stainless-steel drop-down door
  • Washer chamber material: AISI 316L
  • External material: AISI 304
  • Forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Undercounter installation: Yes
  • Dimensions (WxDxH mm): 600x600x850
  • Electrical: 3N AC 400V - 50Hz (conversion kits available)
  • Hydraulics: Cold water yes; Hot water optional (T4260AC); Demineralized water yes; Drain pump yes
  • Programs: 20 standard, 20 modifiable
  • Traceability: last 300 programs, cycle archive and downloadable cycles (LAN/USB)
  • Main included dosing pumps: neutraliser and detergent; additional/optional pumps available
